Rubber Seal, Shaft, Rear-Window Wiper

Rubber Seal On Rear Window Wiper Shaft

Repair instruction for rubber seal on rear window wiper shaft

Cause

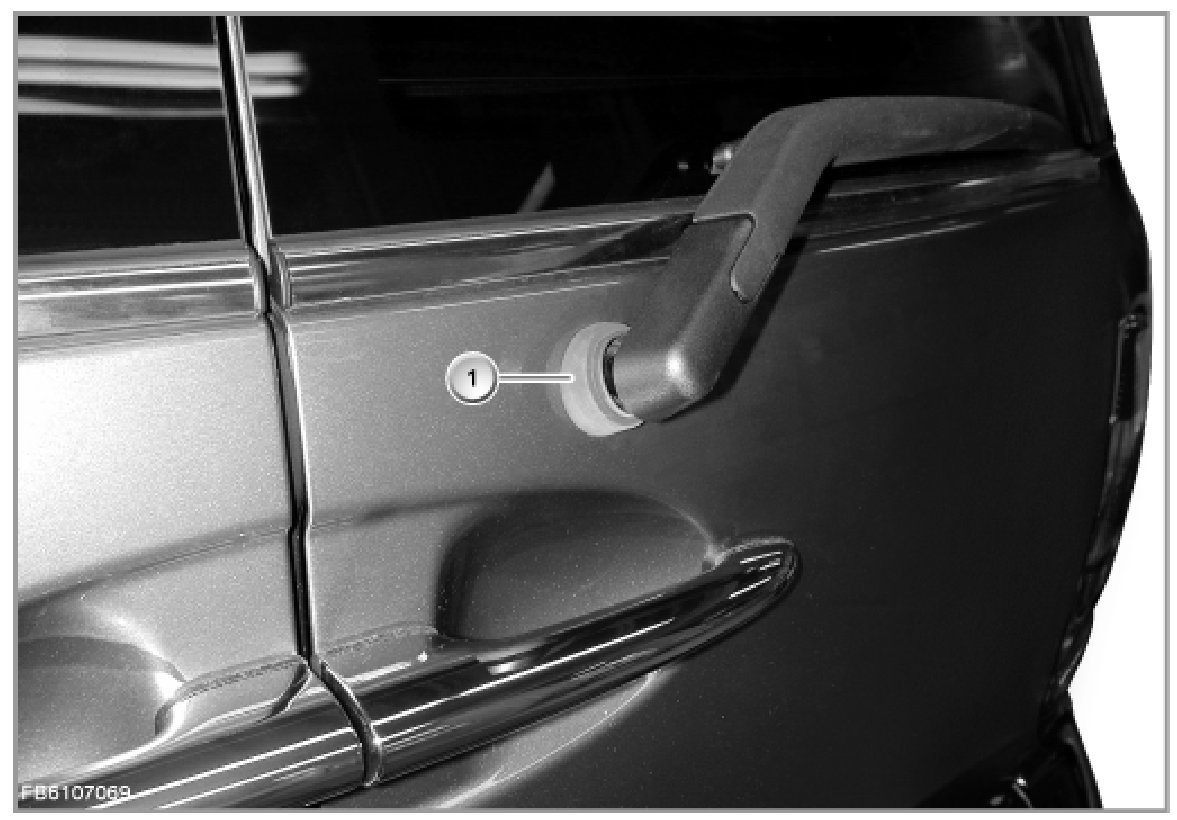

Water droplets on the load sill cover. The water is dripping out of the opening for the floor lighting. The rubber cap (1) on the rear window wiper is defective or not correctly mounted.

Repair instruction
Mount the rubber cap (1) correctly or replace if damaged.
