Front Door Striker: Service and Repair

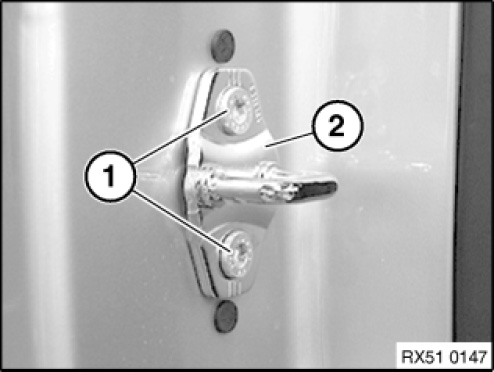

51 21 003 Replacing door detent (lock striker), front left or right







Release screws (1).
Remove door detent (2) with seal.

Installation:
Seal for door detent (2) must not be damaged.
Adjust door detent.
Tightening torque 51 21 2AZ.
