Antenna, Radio: Service and Repair

65 20 300 Removing And Installing/Replacing Bumper Aerial (FM, DAB)







Necessary preliminary tasks:
- Remove rear bumper trim
- Remove right rear light







NOTE: Picture for example purposes R58.

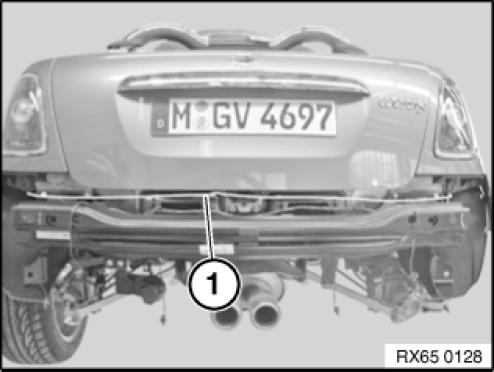

Unclip bumper aerial (1).

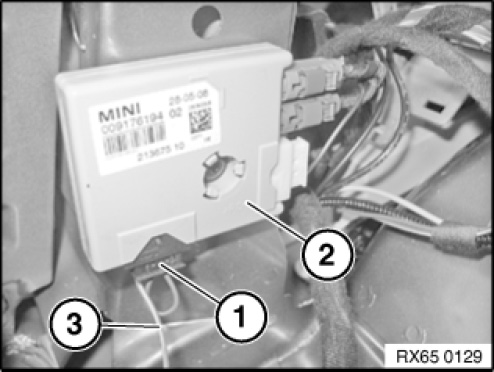

Disconnect plug connection (1) on aerial amplifier (2).
Feed out bumper aerial (3).
