Removing and Installing/Replacing Left or Right High-Pressure Nozzle of Headlight Washer System

61 67 083 Removing And Installing / Replacing Left Or Right High-pressure Nozzle Of Headlight Washer System







Necessary preliminary work:
- Remove headlight

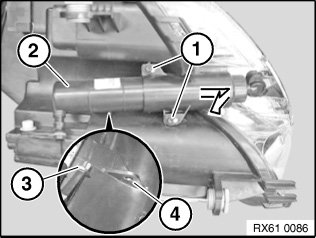

Release screws (1).
Tightening torque 63 12 3AZ.

Remove high-pressure nozzle (2) in direction of arrow.

Installation note:
Make sure guide (3) is correctly seated in lug (4).

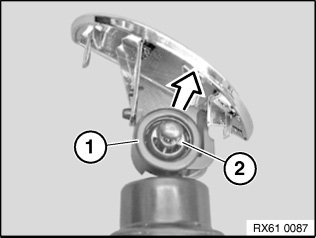

Press holder for chrome trim (1) in direction of arrow off high-pressure nozzle (2).
