51 36 060 Replacing B-Pillar Trim on Rear Side Window

51 36 060 - Replacing B-pillar trim on rear left or right side window





Important!
The Instructions on component cementing with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

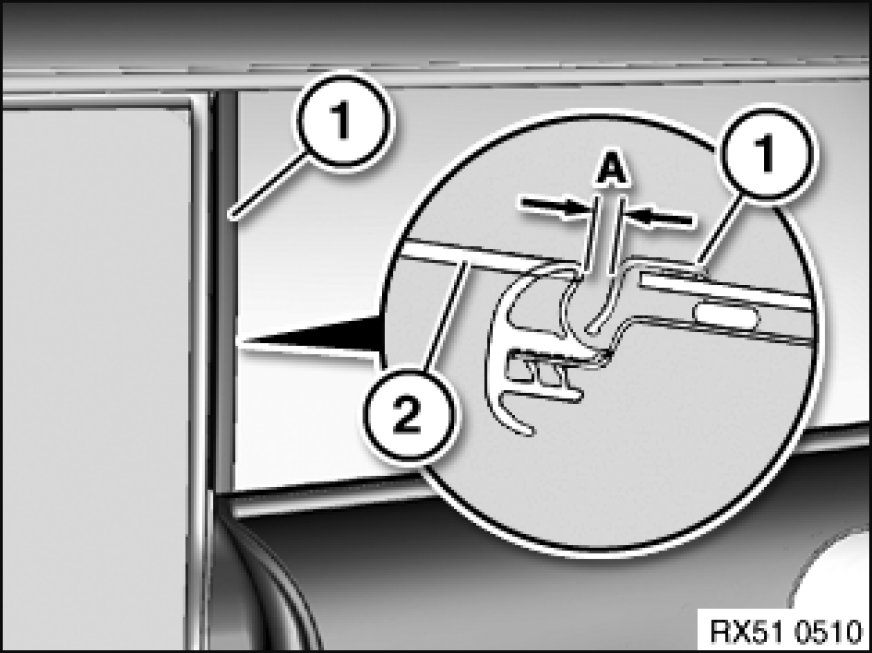

Remove and discard trim (1).

Installation Note:
Clean side window.
Stick on trim (1) in accordance with dimension (A) to door window glass (2).
A= - 6 ± 1 mm
