51 36 040 Removing and Installing/Replacing Strip on Rear Side Window

51 36 040 - Removing and installing/replacing strip on rear left or right side window

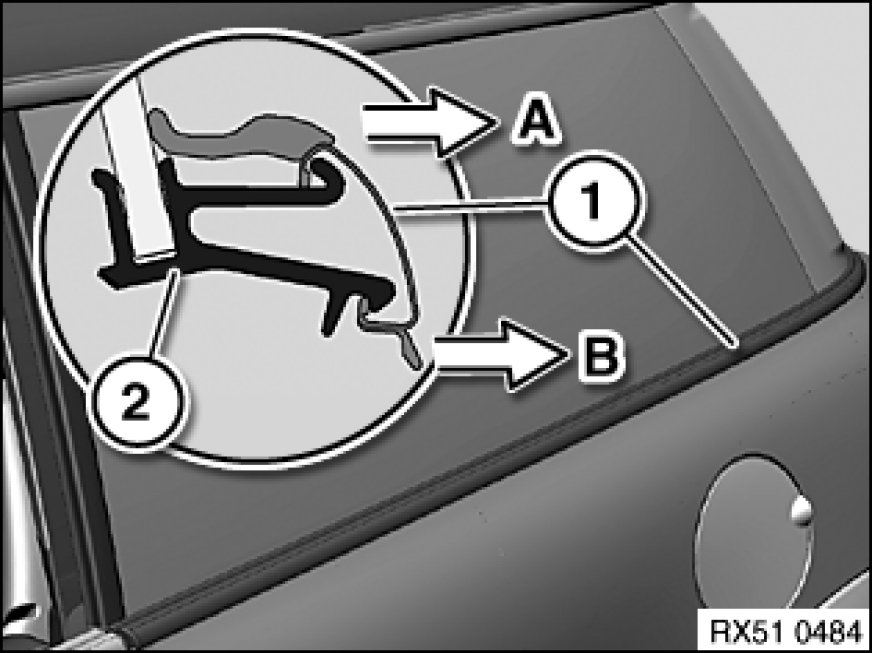

Starting at front, unclip strip (1) first at top (A) then at bottom (B) from retaining strip (2).

Installation:
Retaining strip (2) must not be damaged.
Start assembly at rear.
Clip in first at bottom (B) then at top (A).
Make sure strip (1) is correctly seated in area of door and rear lid.
