Rear Axle - Wheel/chassis Alignment Check Must Be Carried Out after The Following Work

33 00 ... - Rear axle: wheel/chassis alignment check must be carried out after the following work





A wheel/chassis alignment check must be carried out after the following work:
- Release of following screw/bolt connections:

- Trailing arm bracket to body

- Upper control arm to rear axle carrier

- Lower control arm to rear axle carrier / trailing arm

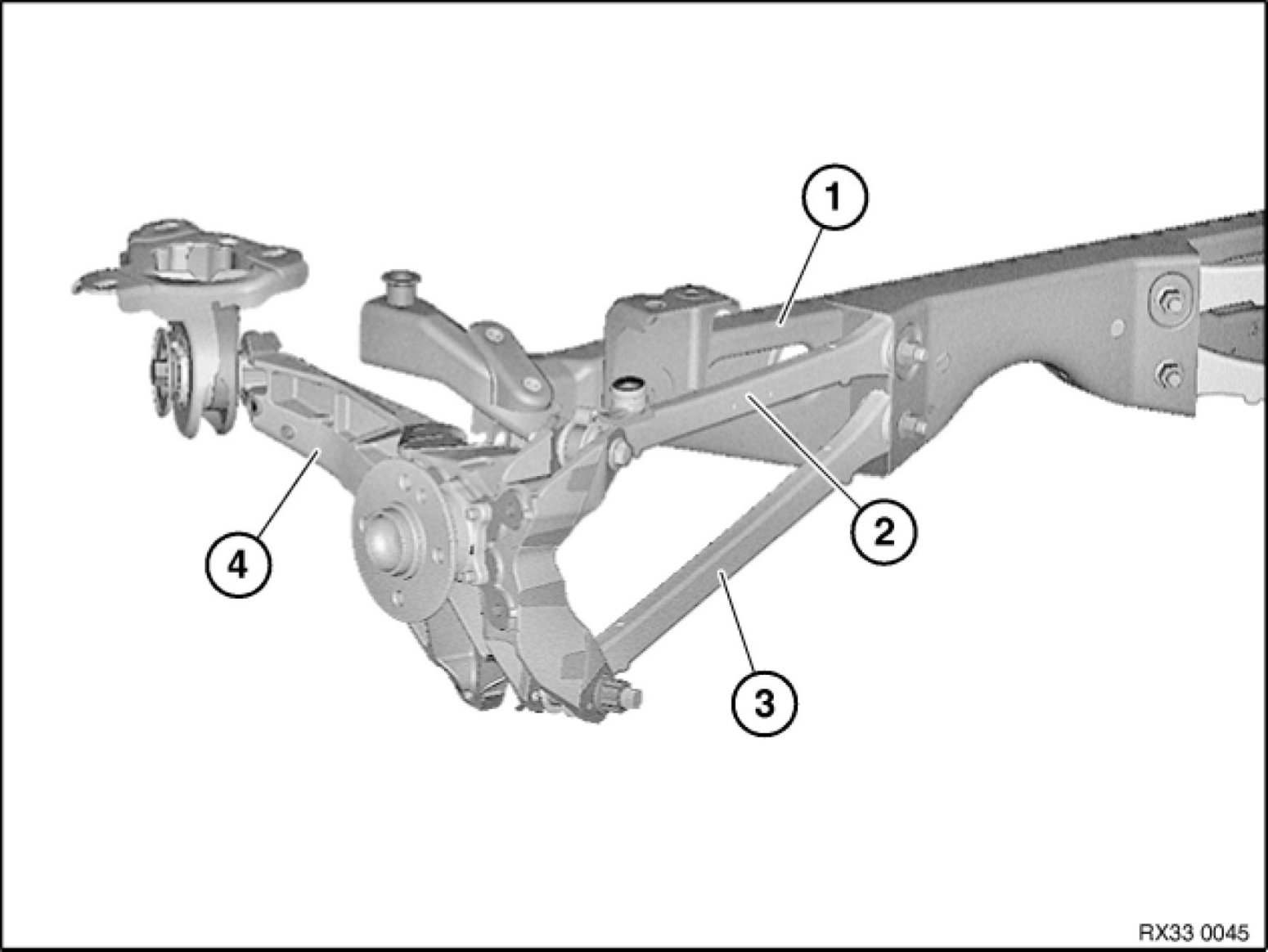

- Replacement of following parts:

1. Rear axle carrier

2. Upper control arm

3. Lower control arm

4. Trailing arm / trailing arm bracket / rubber mount
