34 52 525 Replacing One Front Pulse Generator

34 52 525 Replacing one front pulse sensor





Necessary preliminary tasks:
^ Remove wheel

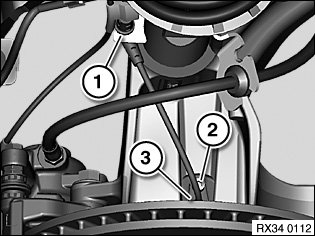

Remove cable from holder (1) on spring strut.

Release screw (2) and remove pulse generator (3).

Installation:
Tightening torque 34 51 4AZ.

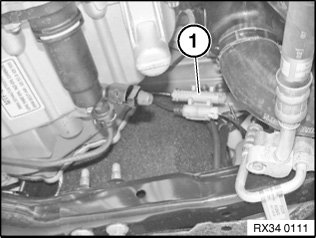

Disconnect plug connection (1).

Installation:
Make sure plug connection engages correctly.





Installation:

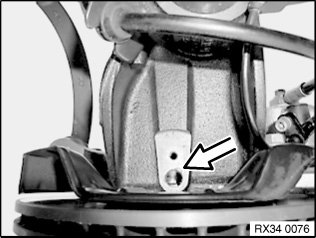

Clean bore hole for pulse sensor and grease with Staburags NBU 12/K lubricating grease (refer to BMW Service Operating Fluids).

Important!
Check sensor head prior to installation for damage, replacing if necessary.
