72 11 101 Removing and Installing/Replacing Rear Centre Seat Belt

72 11 101 - Removing and installing/replacing rear center seat belt





Installation:
- Microencapsulated screws (Loctite(R)) must be replaced and may not be reused
- Screw connection must be completed within 20 mins. (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

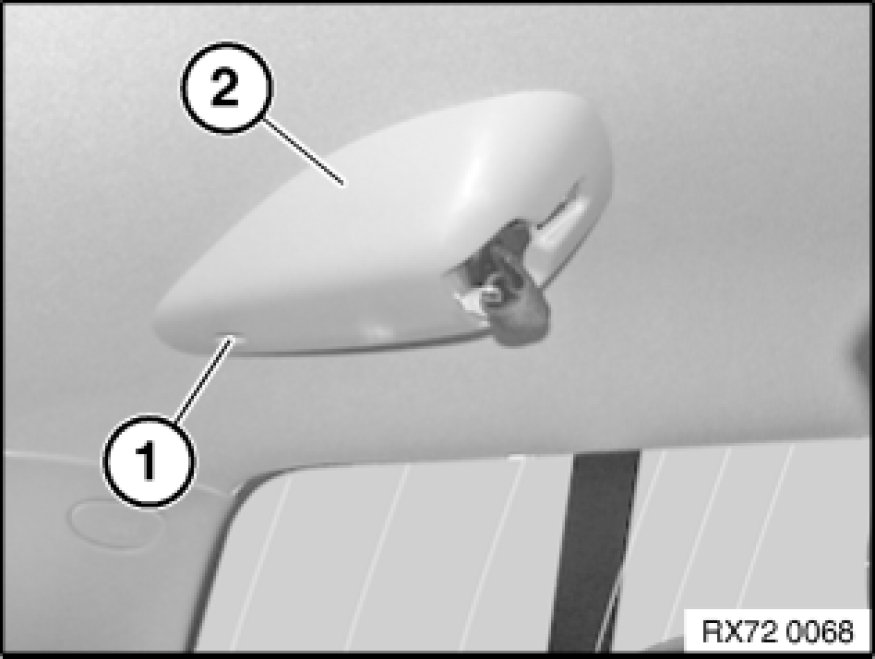

Release screw (1).
Remove cover (2) for inertial reel mechanism.

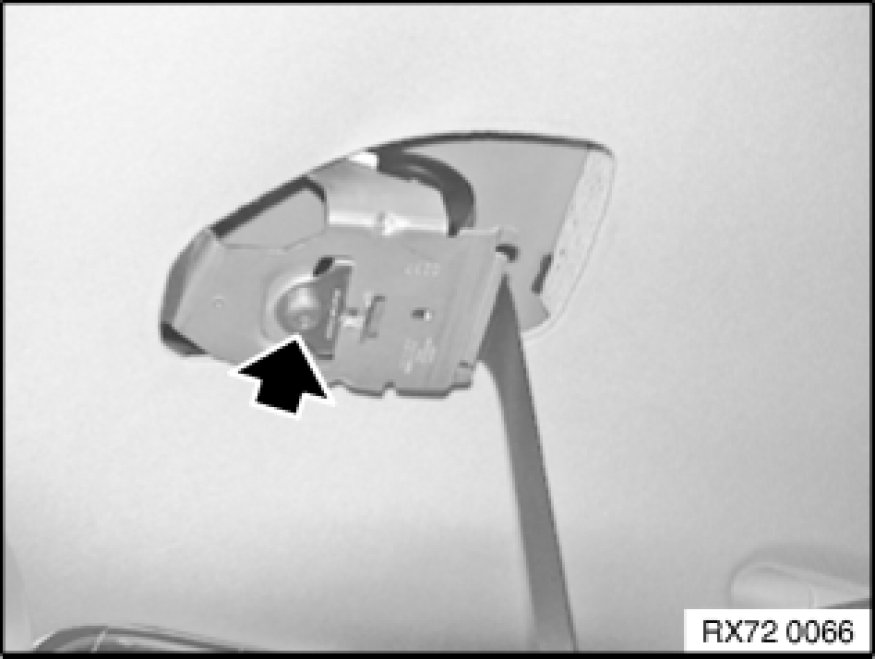

Release screw.
Tightening torque 72 11 05AZ [1][2]72 11 Seat Belts.

Installation:
Replace screw.

Remove inertia reel mechanism towards front.

Installation:
Inertia reel mechanism is coded to prevent incorrect installation.

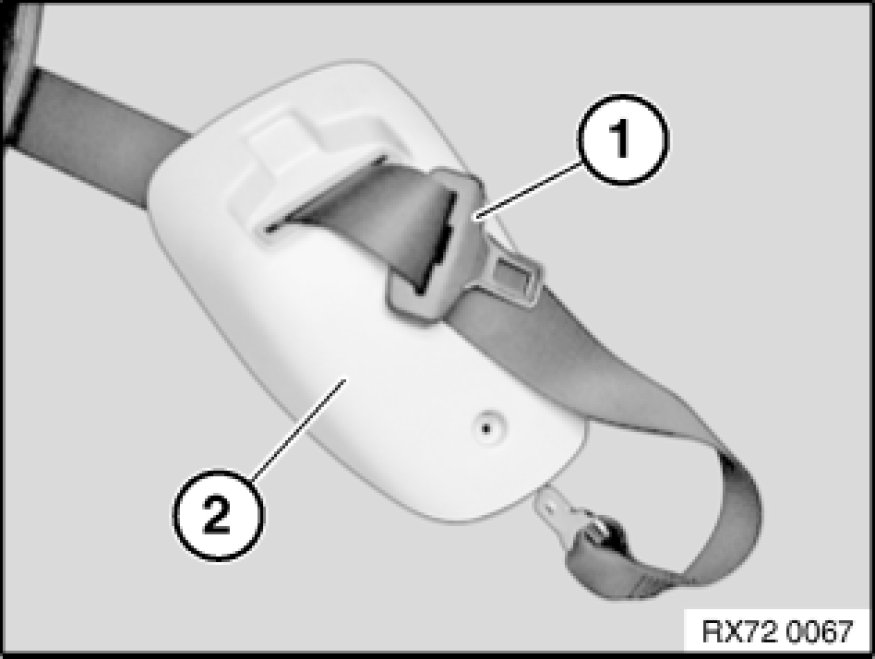

Feed belt tongue (1) with strap out of cover (2) for inertial reel mechanism.
