72 11 001 Removing and Installing/Replacing Front Seat Belt Completely on the Front Left

72 11 001 - Removing and installing/replacing front left seat belt





Necessary preliminary tasks:
- Remove rear side trim panel Removing and Installing Rear Left or Right Side Trim Panel





Installation:
- Microencapsulated screws (Loctite(R)) must be replaced and may not be reused
- Screw connection must be completed within 20 mins. (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

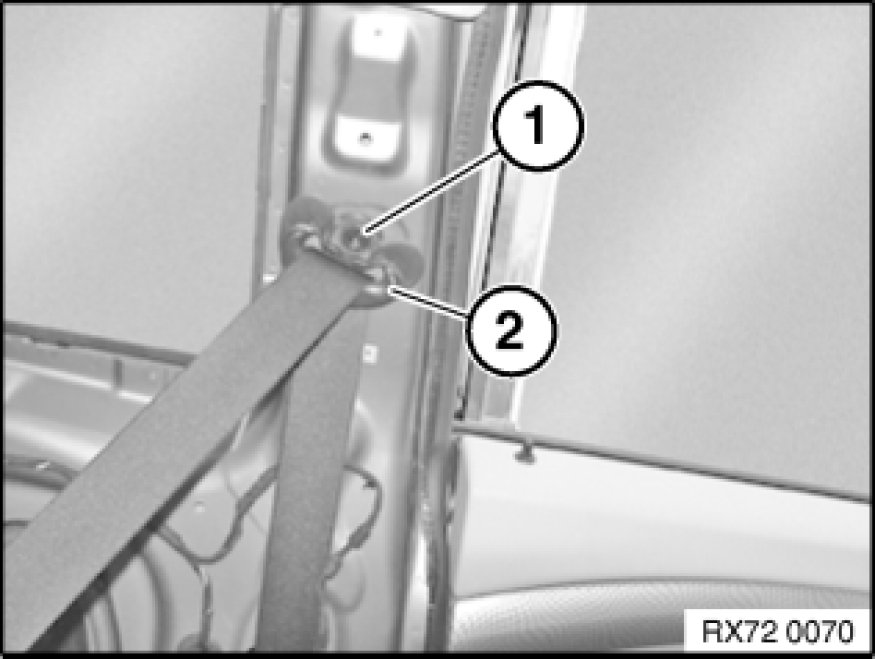

Release screw (1).
Remove reversing clip (2).

Installation:
Tightening torque 72 11 03AZ [1][2]72 11 Seat Belts.

Replace screw (1).





Release screw (1).
Tightening torque 72 11 02AZ [1][2]72 11 Seat Belts.
Remove inertia reel mechanism (2).

Installation:
Inertia reel mechanism (2) is coded against incorrect installation (3).
Replace screw (1).





Release screw (1).
Tightening torque 72 11 04AZ [1][2]72 11 Seat Belts.

Installation:
Replace screw.
Feed out anchor fitting from trim panel for door pillar (top)
