11 61 362 Replacing Right Charge Air Duct

11 61 362 Replacing Right Charge-air Duct

Necessary preliminary tasks:
- Remove right headlight

IMPORTANT:
- Charge-air hoses with clamp fastenings must be installed dry and free from grease.
- If charge-air hoses with clamp fastenings are not installed dry and free from grease, this may result in turbocharger failure.

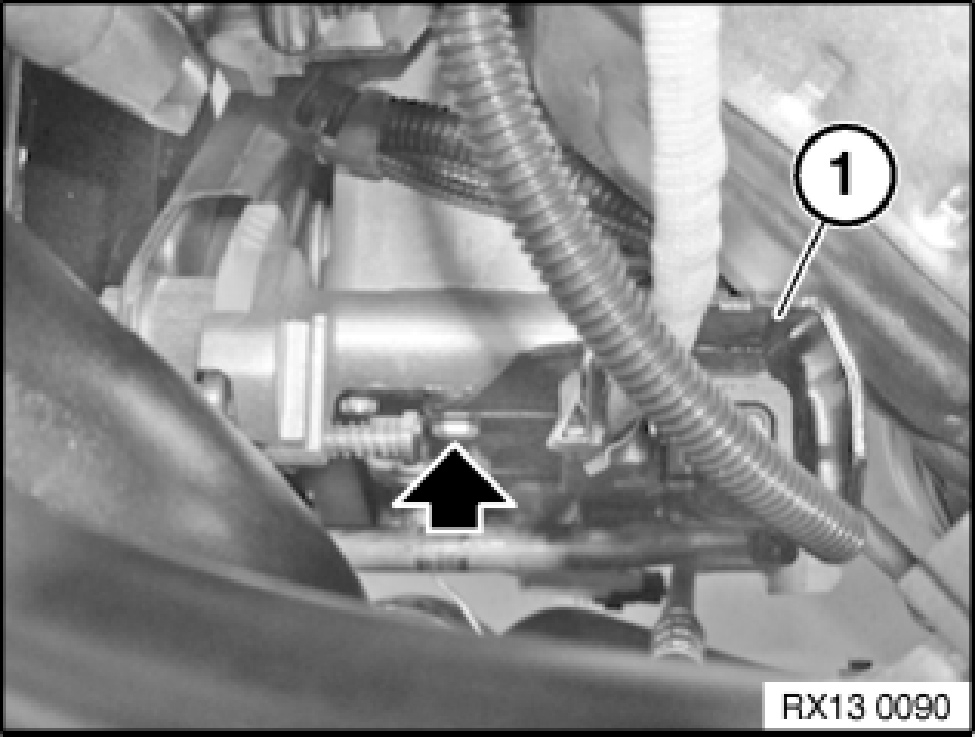

Release screw and remove holder (1).

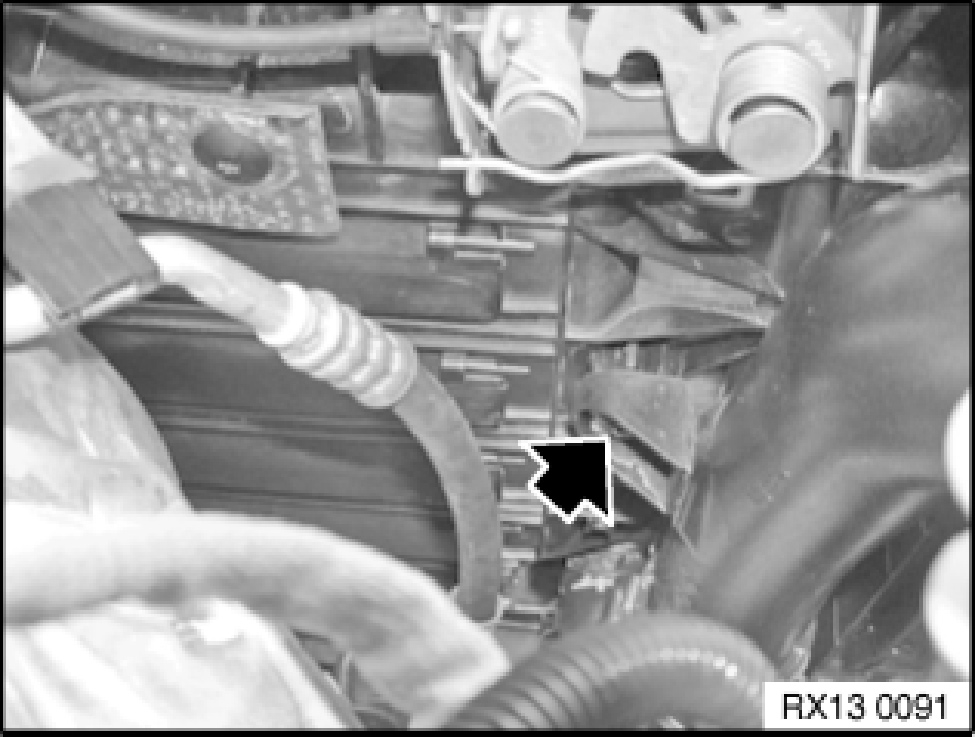

Release bolt.

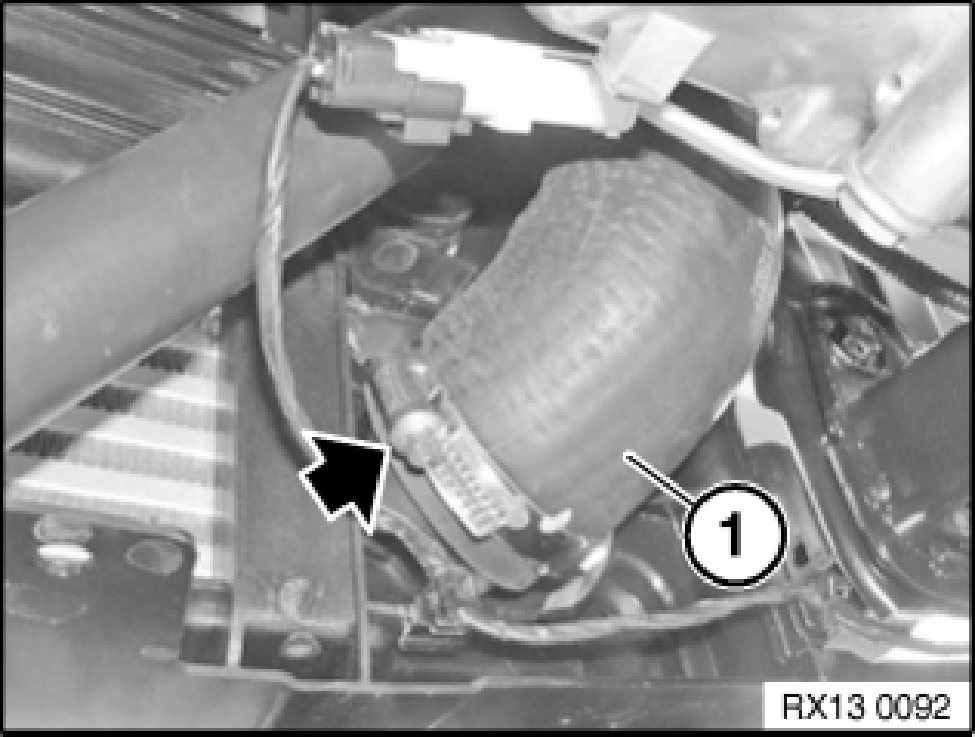

Release clamp and detach charge-air hose (1).

Installation:

Fit charge-air hose dry and without grease.







Release bolt.

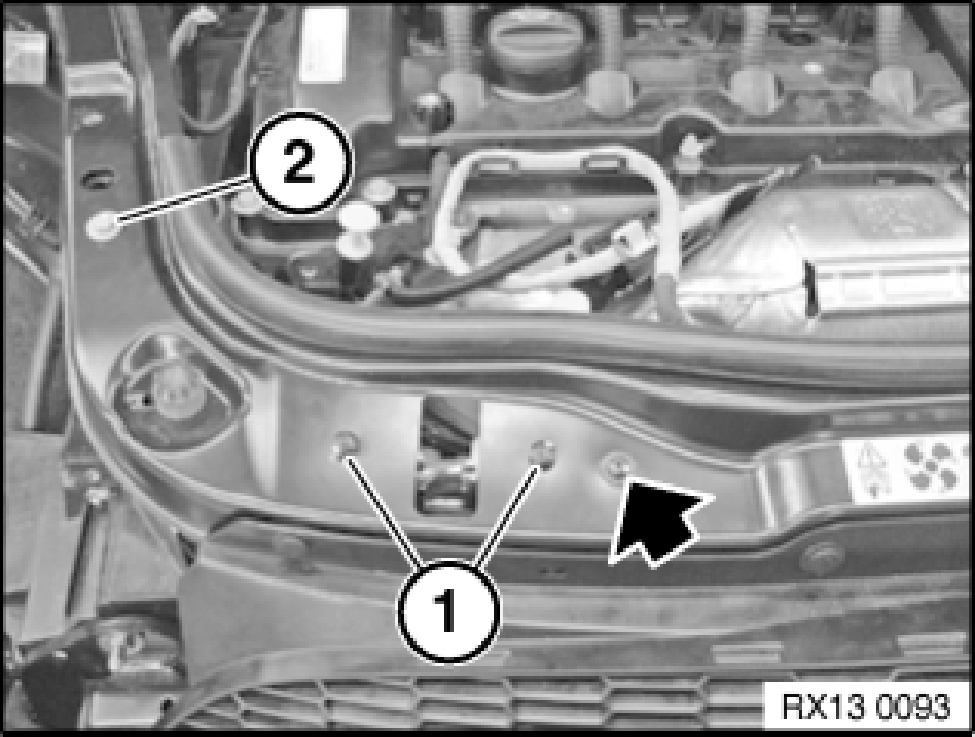

Release screws (1).
Tightening torque 51 23 3AZ.

Release screw (2).







Release bolt.

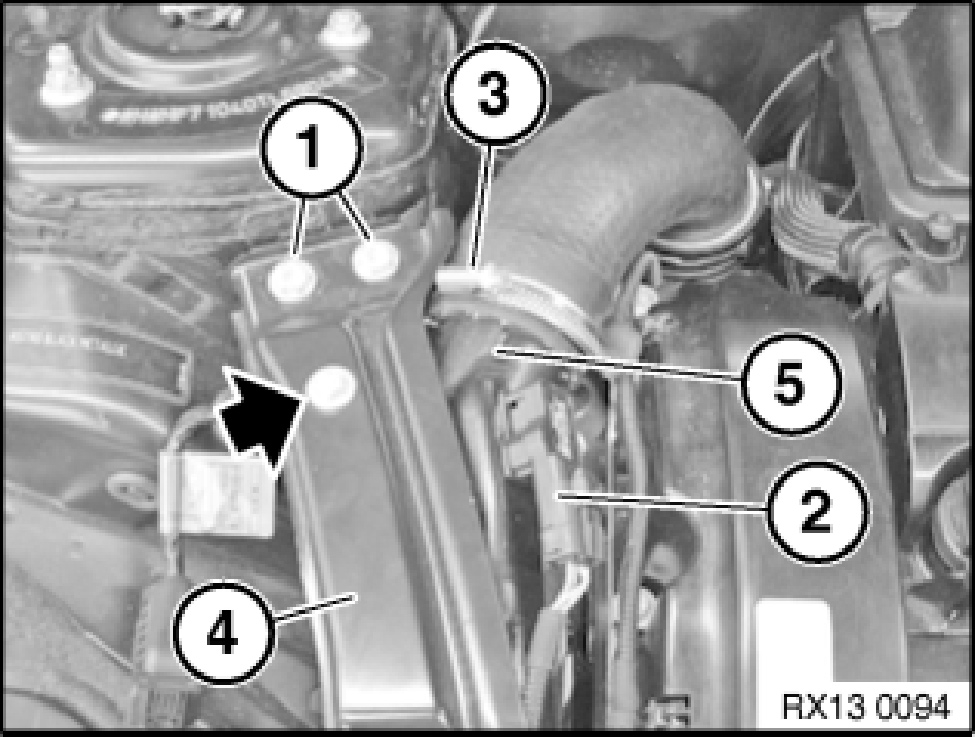

Release screws (1).
Tightening torque 15 11 7AZ.

Unlock connector (2) and remove.
Release clamp (3).
Raise lock carrier (4) slightly.
Detach charge-air duct (5) from hose and remove.

Installation:
Fit charge-air hose dry and without grease.
