84 21 535 Removing and Installing/Replacing Hands-Free Charging Electronics

84 21 535 - Removing and installing/replacing hands-free charging electronics





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Note:
Comply with notes and instructions on handling optical waveguides 61 00 ... Notes on Handling Optical Fibers.





Necessary preliminary tasks:
- Remove left front seat Removing and Installing Left or Right Front Seat (Normal / Manual)





Release screws (1) and remove cover (2) in direction of arrow.

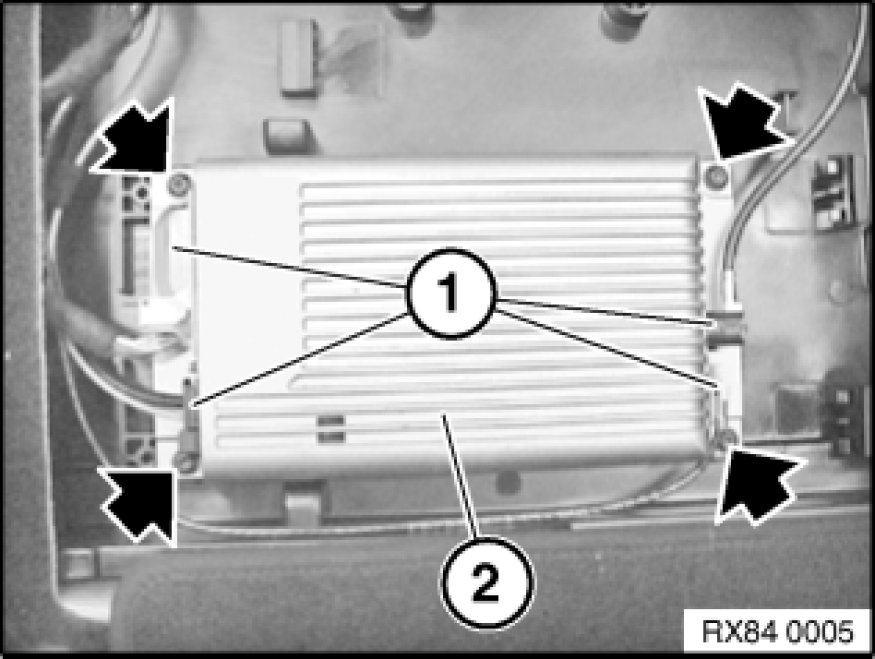

Disconnect plug connection (1).
Unscrew all bolts.
Remove hands-free charging electronics (2).





Replacement:
- Carry out vehicle programming/coding Programming and Relearning
- If necessary, log mobile phone on to vehicle
