Removing and Installing/Replacing Front Controller

61 31 195 Removing And Installing (Replacing) Front Controller







Necessary preliminary work:
- Remove storage compartment

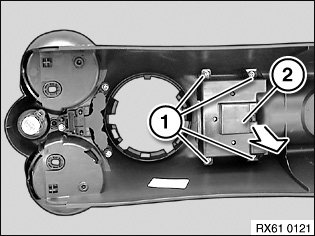

Release screws (1).
Remove controller (2).







Installation note:
Controller must be correctly seated in guide pins (2).
