Home >> Mini >> 2009 >> Cooper JCW Clubman (R55) L4-1.6L Turbo (N14) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F22 >> Fuse F22 (Clubman Up to 12/08)

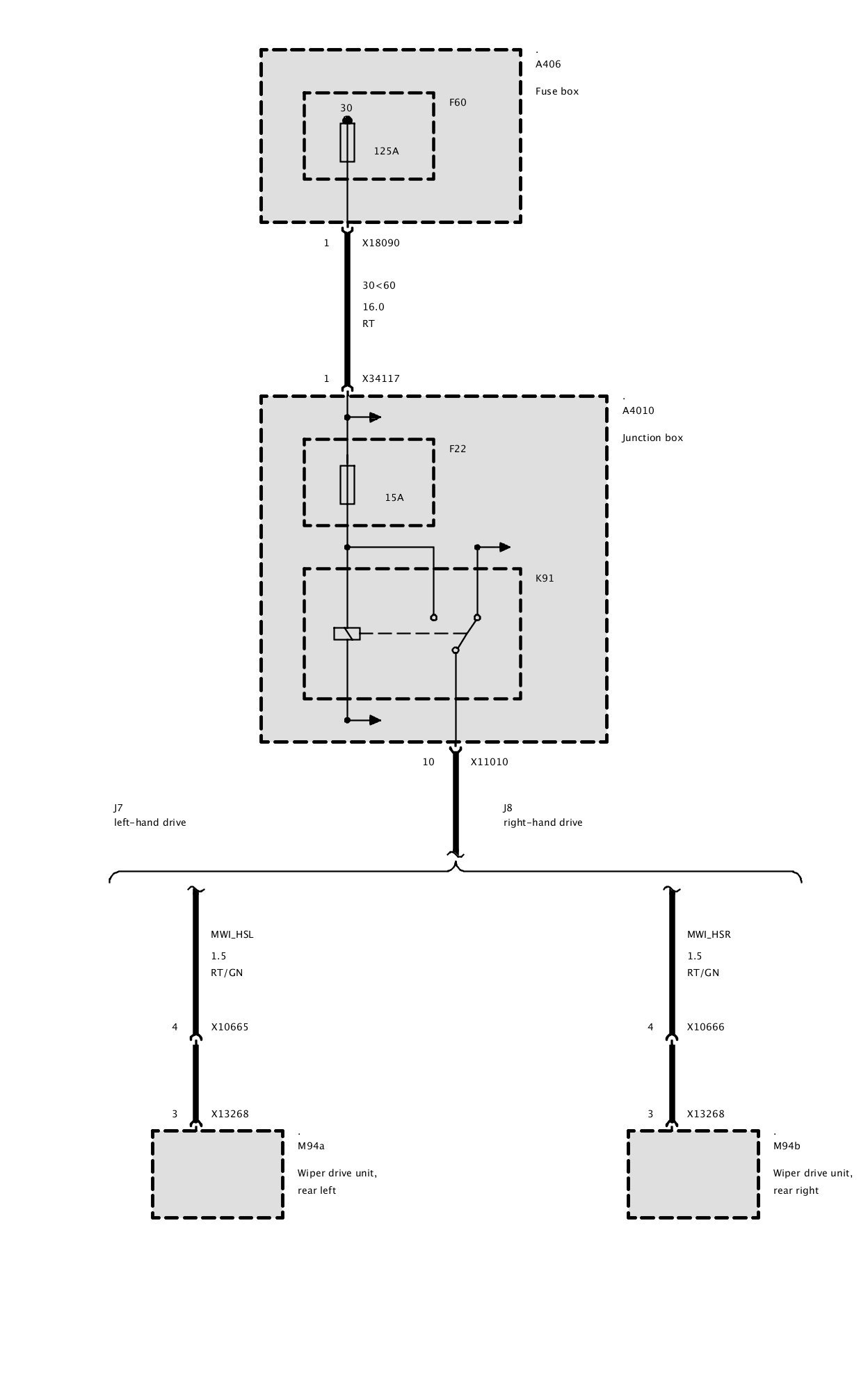

Fuse F22 (Clubman Up to 12/08)



Fuse F22 (Clubman Up to 12/08)
