51 76 020 Removing and Installing / Replacing Seal on Left Splitdoor

51 76 020 - Removing and installing/replacing seal on left splitdoor





Necessary preliminary tasks:
- Remove panel for left splitdoor





Note:

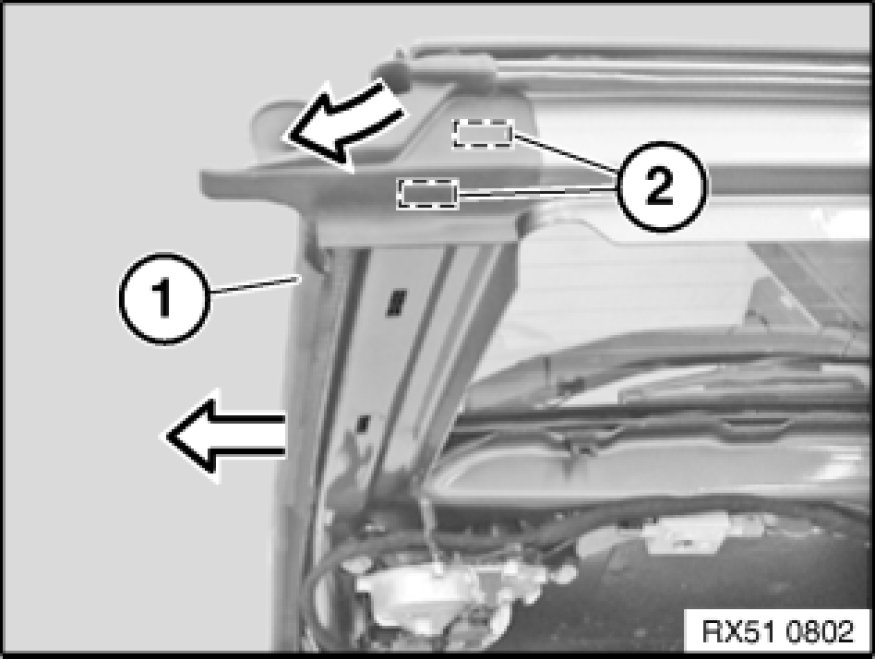

Seal (1) is secured in area of rear window with double-sided adhesive tape.

Release seal (1) from adhesive tape (2) and pull off in direction of arrow.

Installation:
Follow instructions for sticking components with double-sided adhesive tape.

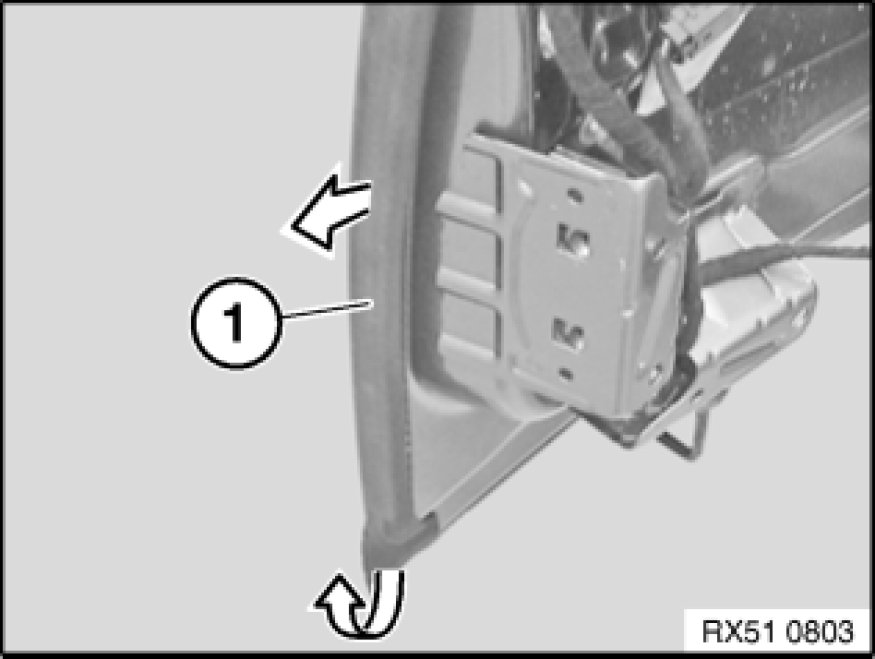

Release seal (1) in direction of arrow.
