51 71 202 Removing and Installing / Replacing Seal on Clubdoor

51 71 202 - Removing and installing/replacing seal on clubdoor

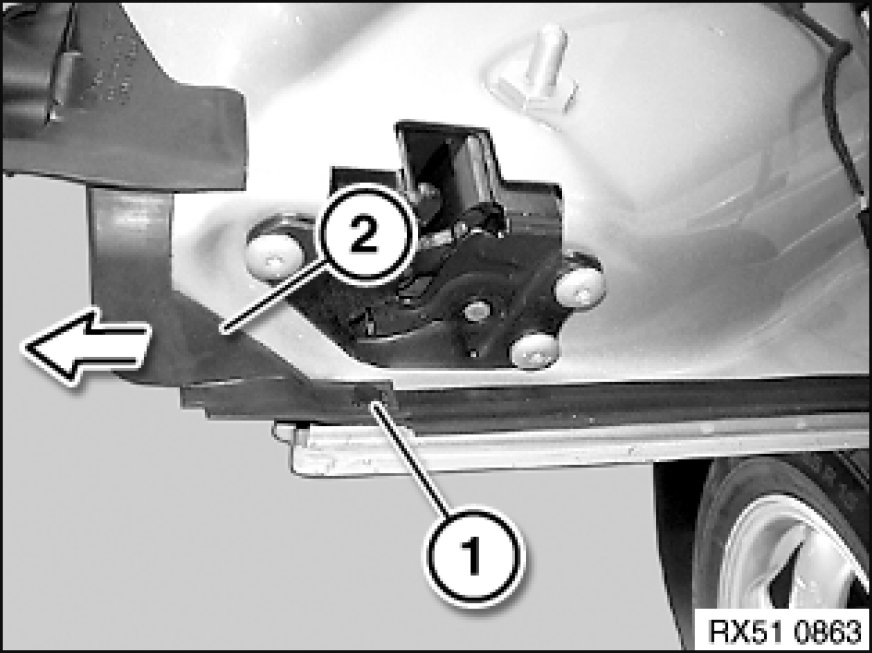

Release clip (1).
Feed seal (2) in direction of arrow out of clubdoor.

Installation:
If necessary, replace faulty clip (1).
Make sure seal (2) is correctly seated on clubdoor.

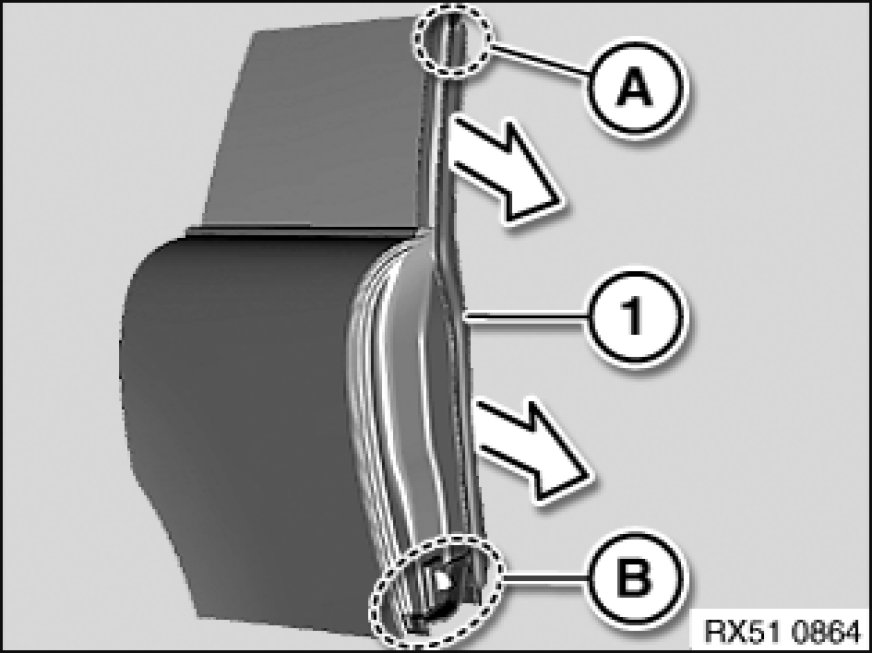

Detach seal (1) in direction of arrow from clubdoor.

Installation:
Make sure seal (1) is correctly seated in area (A) of door window and area (B) on clubdoor at bottom.
