51 22 301 Removing and Installing/Replacing Window Cavity Cover Strip on Outside of Clubdoor

51 22 301 - Removing and installing/replacing window cavity cover strip on outside of Clubdoor

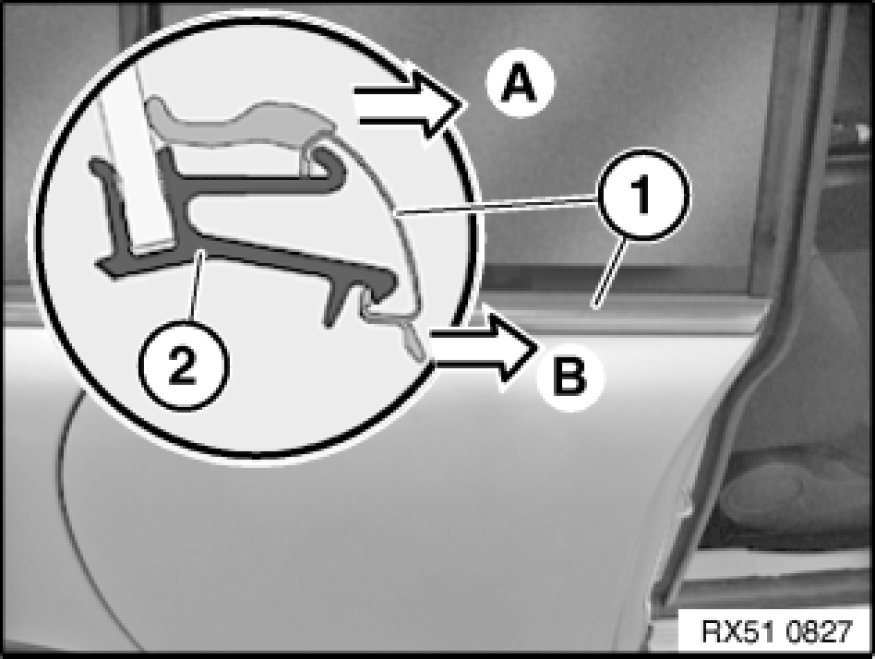

Starting at front, unclip cover strip (1) first at top (A) then at bottom (B) from retaining strip (2).

Installation:
Retaining strip (2) must not be damaged.
Start assembly at rear.
Clip in first at bottom (B) then at top (A).
Make sure cover strip (1) is correctly seated.
