52 26 751 Replacing Bowden Cable for Left or Right Rear Seat Backrest

52 26 751 - Replacing Bowden cable for left or right rear seat backrest





Necessary preliminary tasks:
- Remove backrest cover Removing and Installing/Replacing Backrest Cover for Left or Right Rear Seat





Release screws (1).
Tightening torque 52 26 01AZ Rear Seats (Through-Loading System).

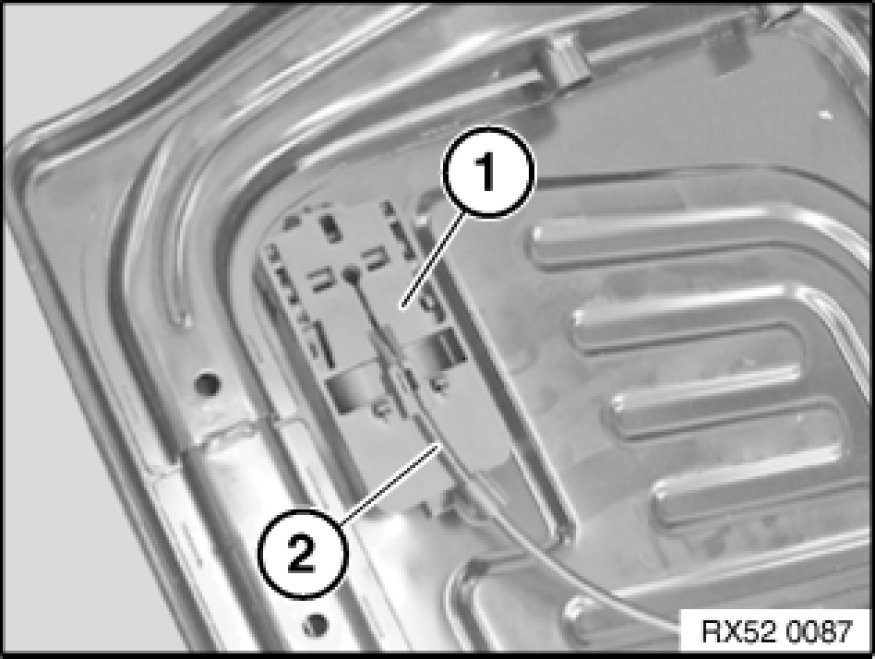

Unclip Bowden cable (1) and feed out from rear seat backrest lock.





Feed Bowden cable (2) out of grip recess plate (1).
