54 10 250 Removing and Installing/Replacing Rear Glass Lid

54 10 250 - Removing and installing rear glass lid





Installation:
- Microencapsulated screws (Loctite(R)) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

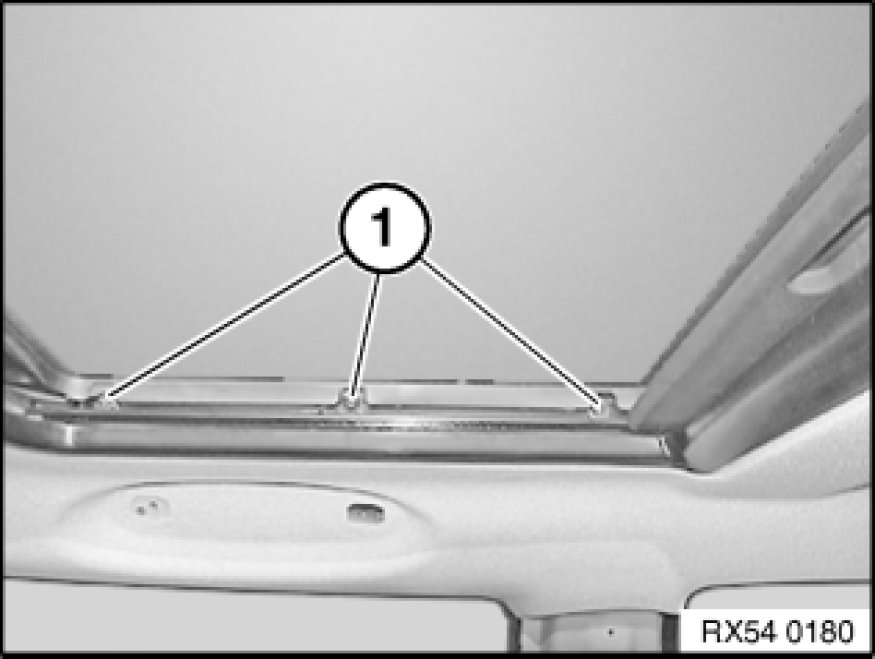

Release left and right screws (1).
Tightening torque 54 12 04AZ [1][2]Specifications.
Carefully lift out glass lid.

Installation:
Replace Torx screw and insert with Loctite(R).
Adjust glass lid.
Carry out initialization.
