54 10 240 Removing and Installing/Replacing Front Glass Slide/Tilt Sunroof Cover

54 10 240 Removing And Installing/Replacing Front Glass Slide/tilt Sunroof Cover







Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 mins. (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

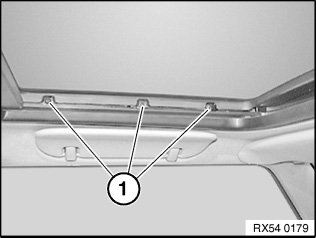

Release left and right screws (1).
Tightening torque 54 12 04AZ.
Carefully remove the glass slide/tilt sunroof cover upwards.

Installation note:
Replace Torx screw.
Adjust glass slide/tilt sunroof cover.
Carry out initialisation.
