51 16 206 Removing and Installing / Replacing Centre Armrest

51 16 206 - Removing and installing/replacing center armrest





Necessary preliminary tasks:
Version with telephone:
- Remove storage compartment 51 16 200 Removing and Installing Storage Compartment





Version with telephone:

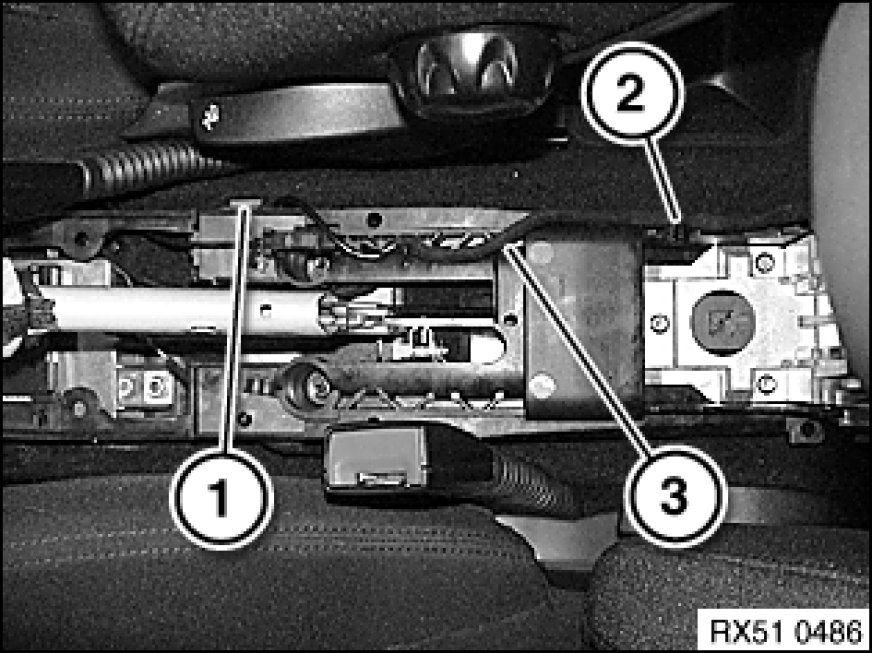

Disconnect plug connection (1).
Release cable holder (2) and feed out cable (3).





Version without telephone:
Release side screws on trims (1).
Unclip trims (1) in direction of arrow from each other and remove.
Release screw (2).
Unclip drinks holder (3) in upward direction and remove.





Release screws (1) at sides.
Release screws (2) and lift out center armrest (3).
Tightening torque 51 16 5AZ [1][2]51 16 Mirrors, Covers, Ashtrays, Storage Compartments.





Replacement:
- Remove cover for center armrest 51 16 196 Removing and Installing/Replacing Cover For Center Armrest

- Remove storage tray (1).

- Release screw (2) and remove cover (3).

- Remove eject box Service and Repair
