Rear Bumper Reinforcement: Service and Repair

51 12 050 - Removing and installing/replacing carrier for rear bumper trim





Necessary preliminary tasks:
- Remove bumper trim

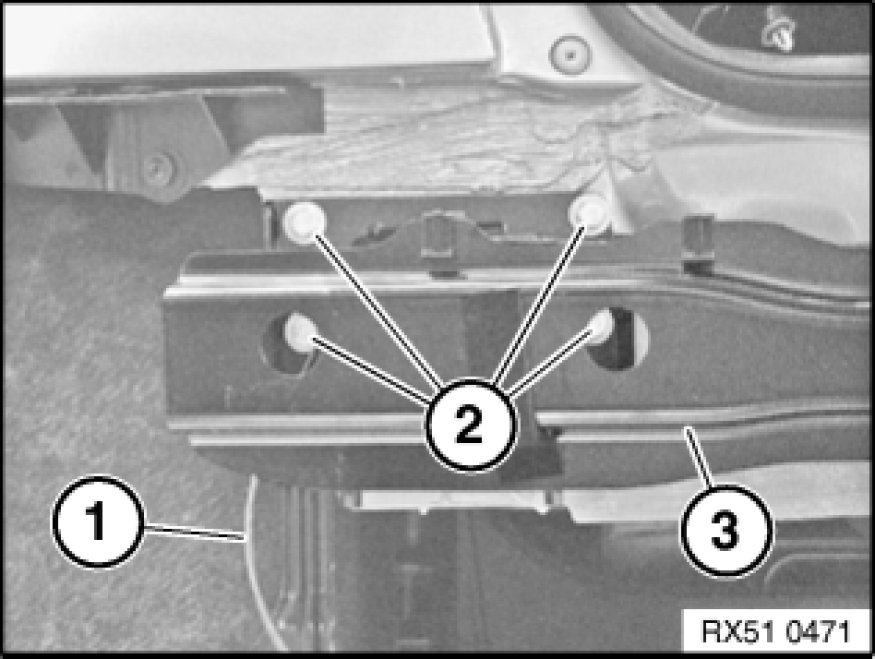

If necessary, detach cable (1) for ultrasonic transducer from carrier (3).
Release screws (2) on left/right and remove carrier (3).
Tightening torque 51 12 1AZ [1][2]Rear Bumper.
