65 11 070 Removing and Installing/Replacing CD Changer

65 11 072 - Removing and installing/replacing CD changer





Note:
Follow instructions for handling optical fibres 61 00 ... Notes on Handling Optical Fibers.





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove knee protection, passenger's side 51 45 254 Removing and Installing/Replacing Knee Protection on Front Passenger Side

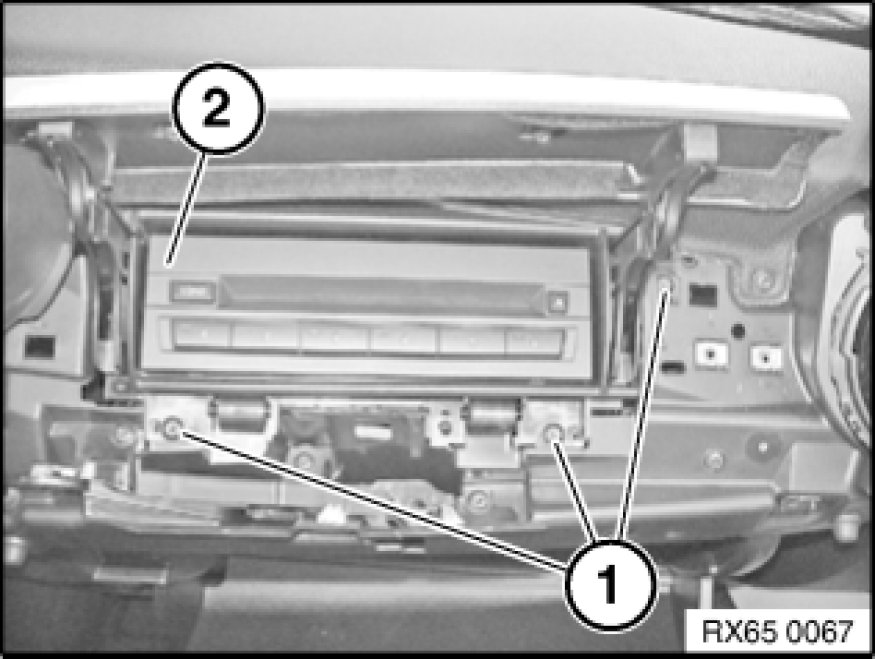

Release screws (1).
Remove CD changer (2) with carrier and disconnect associated plug connection.





Installation:

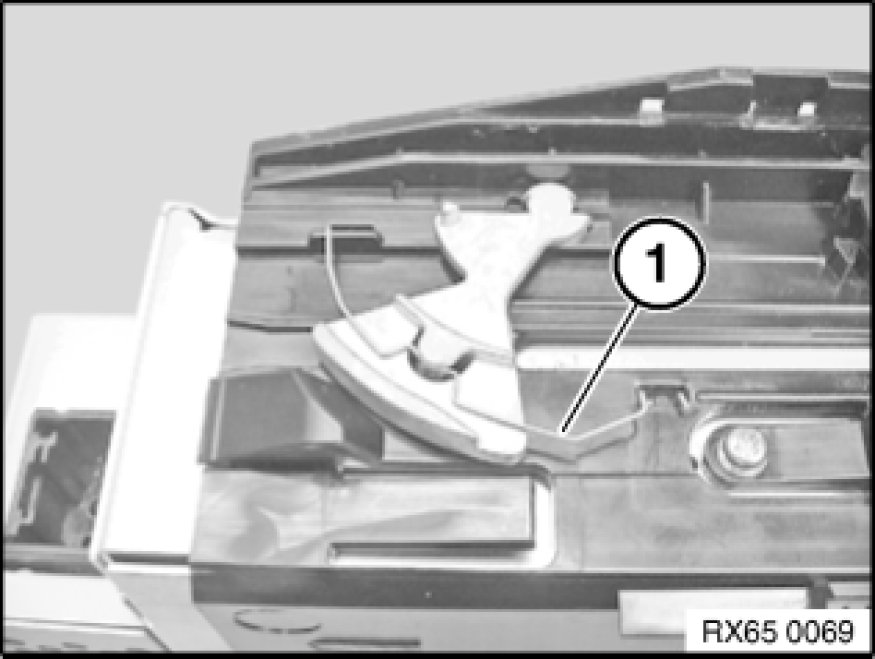

Make sure retainer (1) is correctly seated.





Replacement:

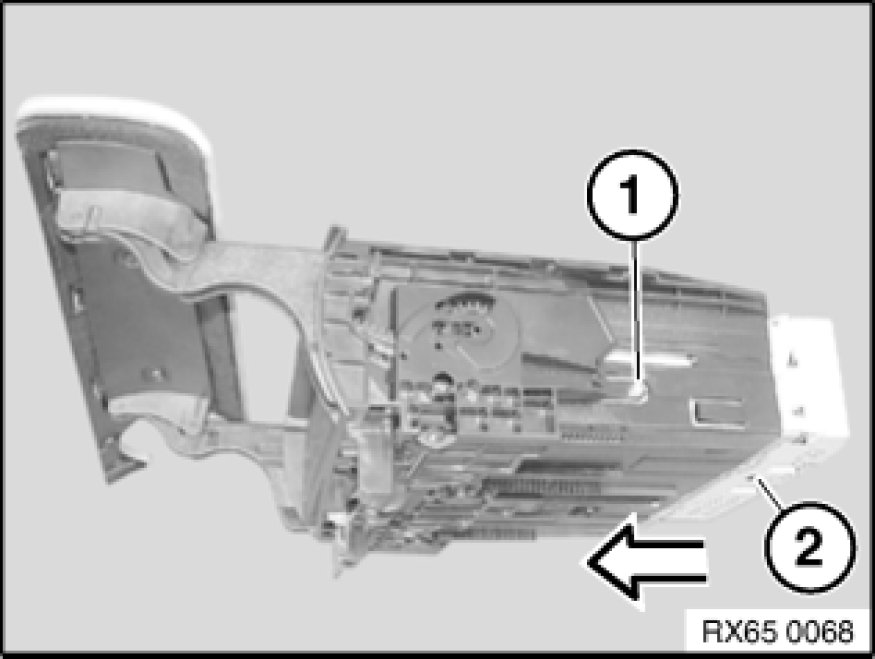

Release screw (1) on both sides and slide CD changer (2) out of carrier.
