Amplifier: Service and Repair

65 12 072 - Removing and installing or replacing amplifier





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove right luggage compartment wheel arch trim





Release screw (1) and slide amplifier (2) in direction of arrow towards rear.
Disconnect associated plug connection and remove amplifier (2).





Installation:

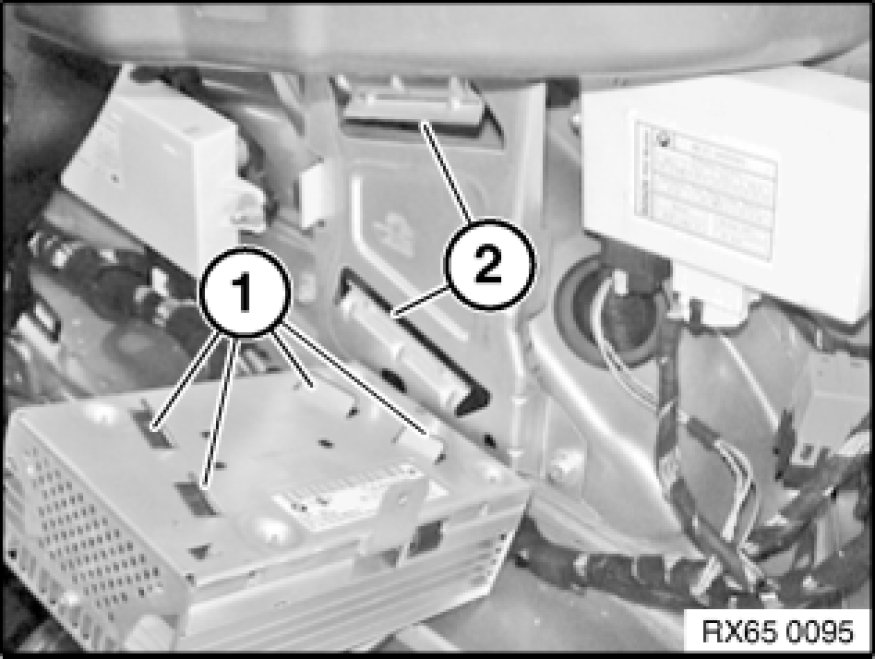

Lugs (1) must be correctly slid into guide (2).
Check that amplifier is firmly seated.
