Antenna Amplifier: Service and Repair

65 20 090 - Removing and installing/replacing antenna amplifier





Necessary preliminary tasks:
- Remove left luggage compartment capping





Note:
Luggage compartment wheel arch trim shown removed for purposes of clarity.

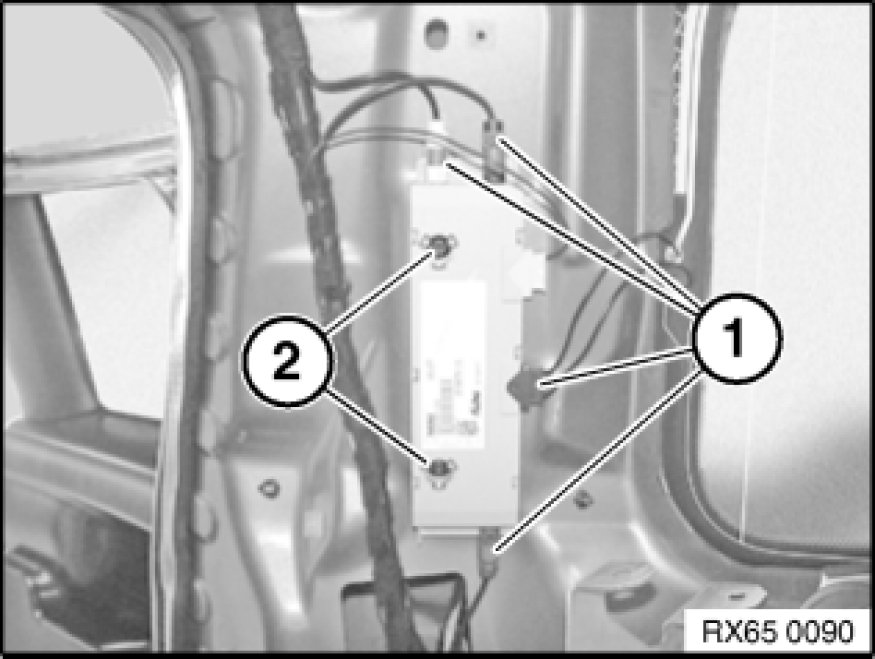

Disconnect plug connection (1).

Unfasten screws (2) and remove antenna amplifier.
