63 99 401 Replacing Bulb For Rear Fog Light



63 99 401 Replacing Bulb For Rear Fog Light







WARNING: Follow instructions for handling light bulbs (exterior lights).

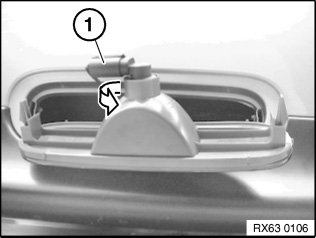

Turn bulb holder (1) in counterclockwise direction and remove from rear fog light.

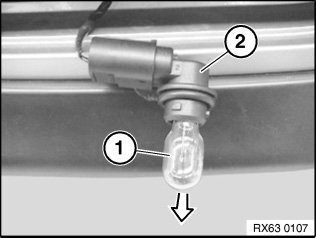

Pull bulb (1) out of bulb holder (2).

Installation:
Note bulb type.
