63 31 187 Replacing LED For Left Or Right Door Pillar Panel



63 31 187 Removing And Installing/Replacing LED For Left or Right Door Pillar Panel

Necessary preliminary tasks:
- Remove upper door pillar panel

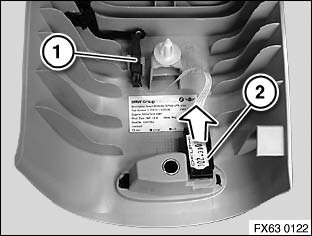

Disconnect plug connection (1).
Pull out LED for door pillar panel (2) in direction of arrow.
