Exhaust Pipe: Service and Repair

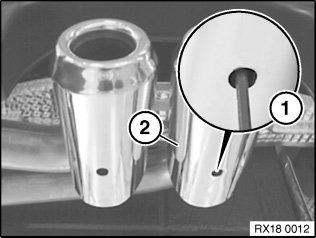

18 10 080 Removing and installing/replacing chrome trim for exhaust pipe





Release screw (1).

Detach trim (2).

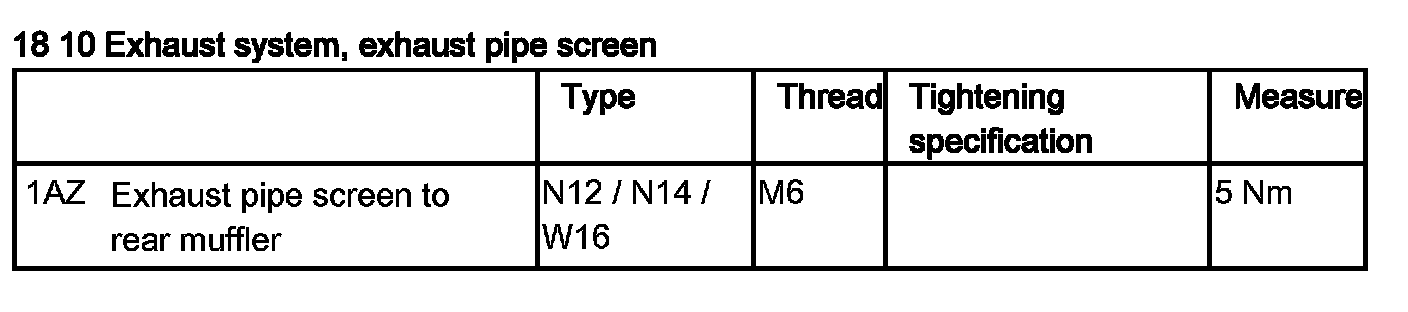

Tightening torque 18 10 1AZ.
