Engine - MINI(R) Emblem Missing From Valve Cover

SI M 11 06 08
Engine

December 2008
Technical Service

SUBJECT
MINI Emblem Missing from Valve Cover

MODEL
R55 Cooper S Clubman
R56 Cooper S

SITUATION

The MINI emblem will no longer be installed on the valve cover of the N14 engine as of 03/2008 production. Some vehicles may still have the "old" style valve cover with mounting holes for the MINI emblem.

PROCEDURE

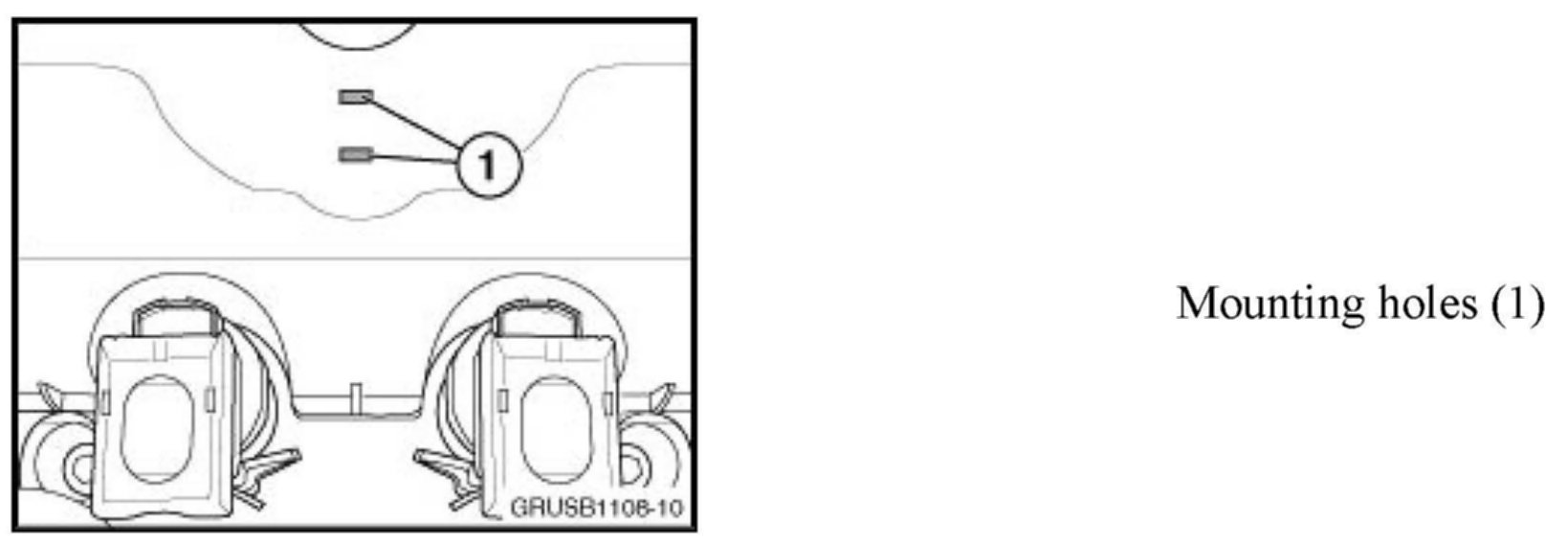

If the mounting holes are present in the valve cover, as shown in the illustration below, then the emblem should be installed on the valve cover, using PN 11 12 7 568 034. Do not replace the entire valve cover.





PARTS INFORMATION





WARRANTY INFORMATION
