FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mini
>>
2009
>>
Cooper JCW (R56) L4-1.6L Turbo (N14)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

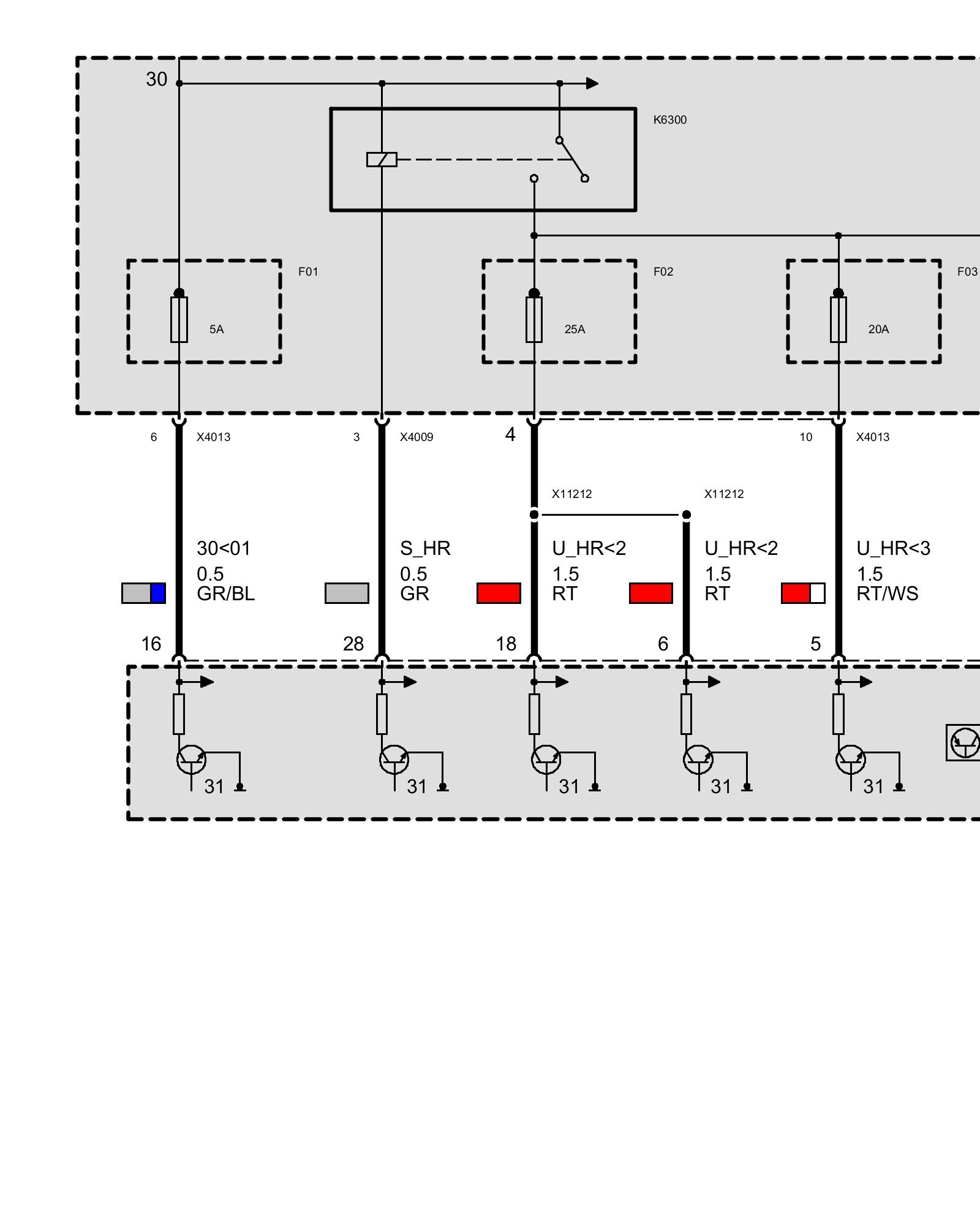

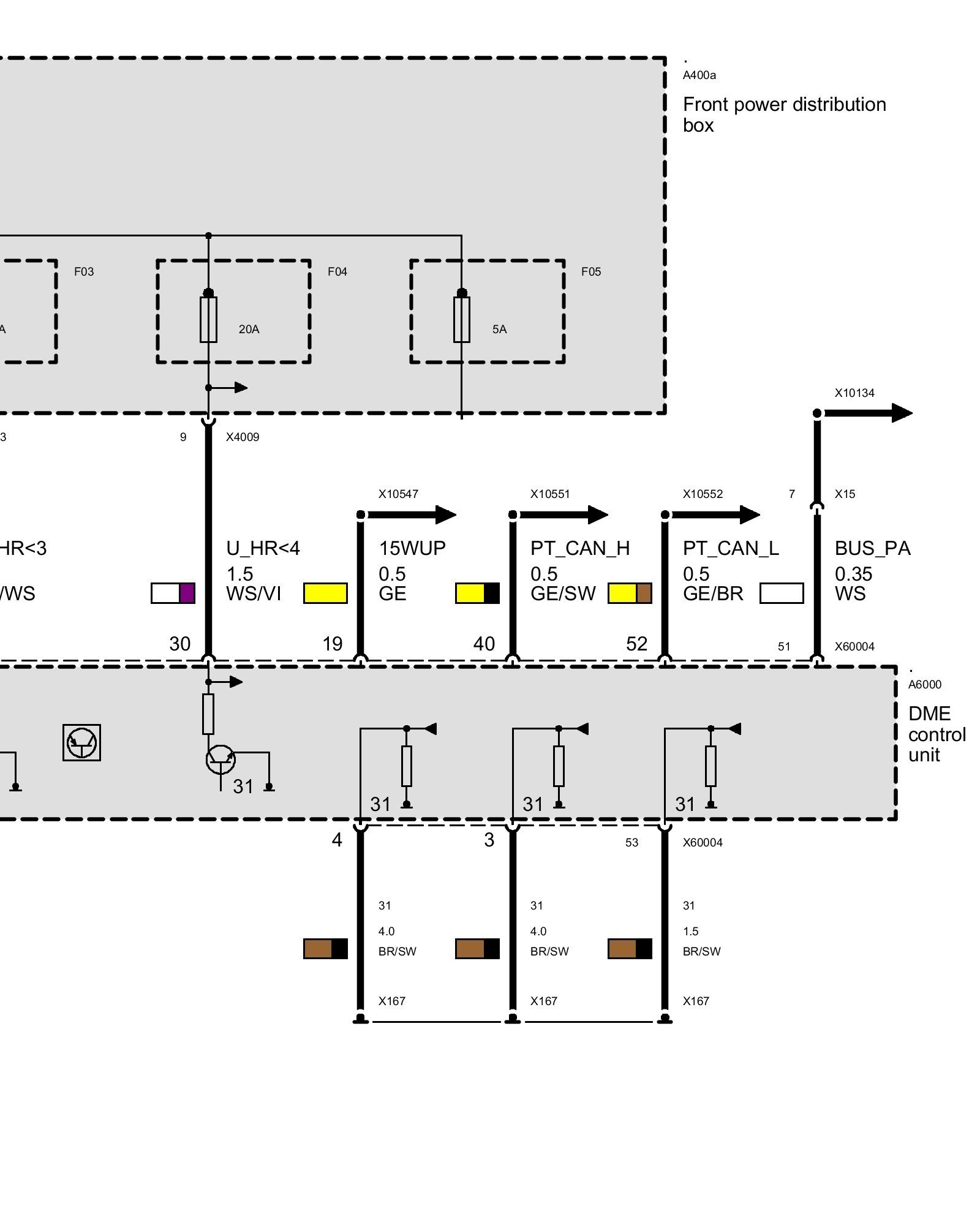

Supply, DME Control Unit
Supply, DME Control Unit
Supply, DME Control Unit
(As Of 08/2007)
