Mini
>>
2009
>>
Cooper JCW (R56) L4-1.6L Turbo (N14)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X9
>>

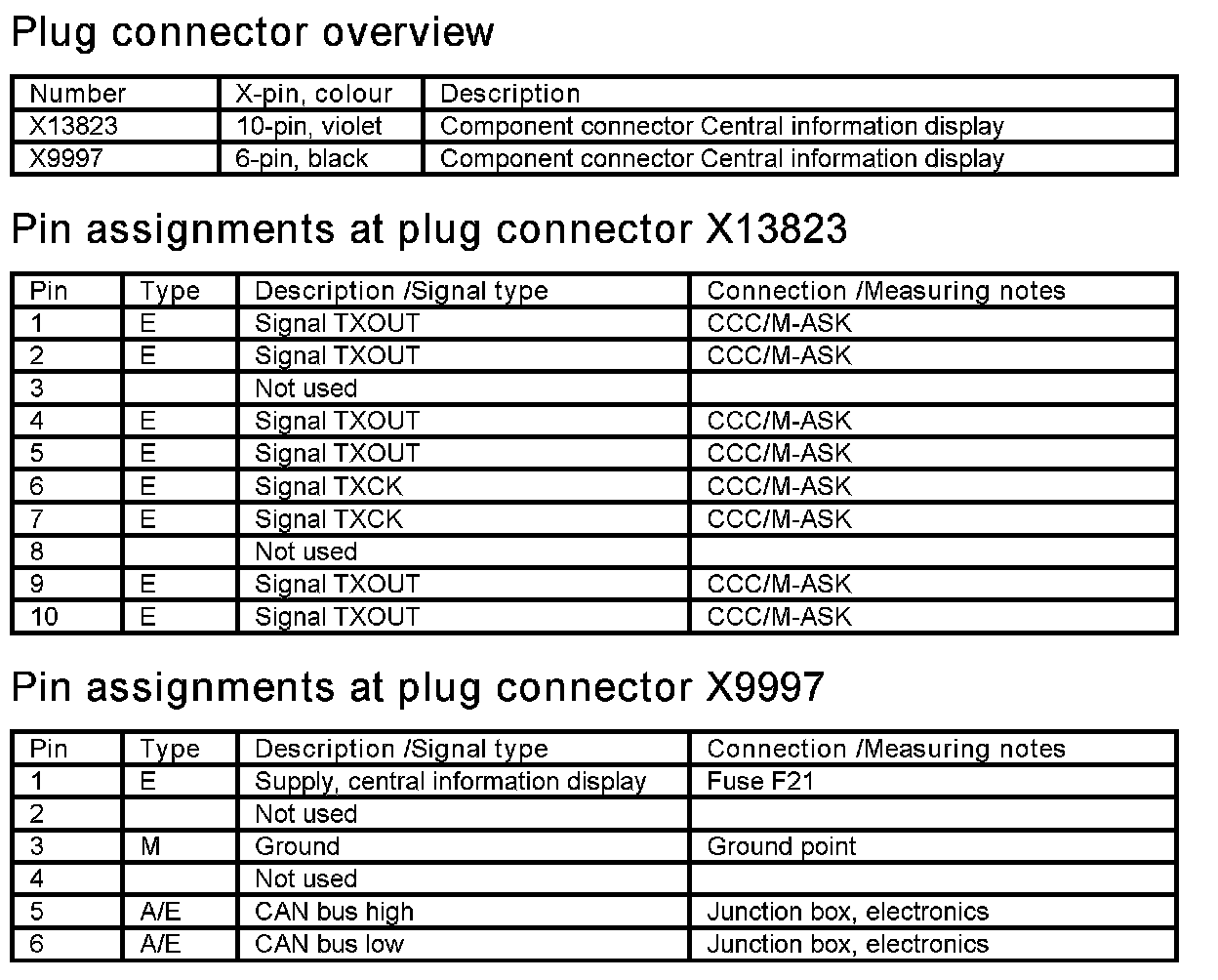

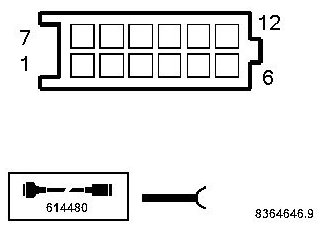

X9997
X9997
X9997
A165a Central Information Display
