Home >> Mini >> 2009 >> Cooper JCW (R56) L4-1.6L Turbo (N14) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X14260 >> A4011 Footwell Module Without Xenon Headlights, Without Adaptive Headlights

A4011 Footwell Module Without Xenon Headlights, Without Adaptive Headlights

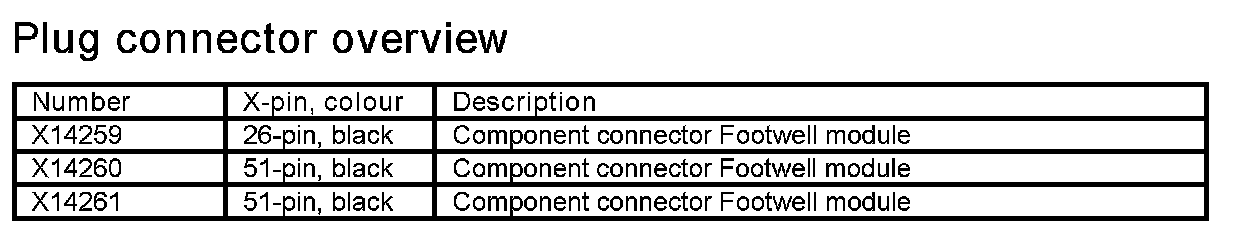

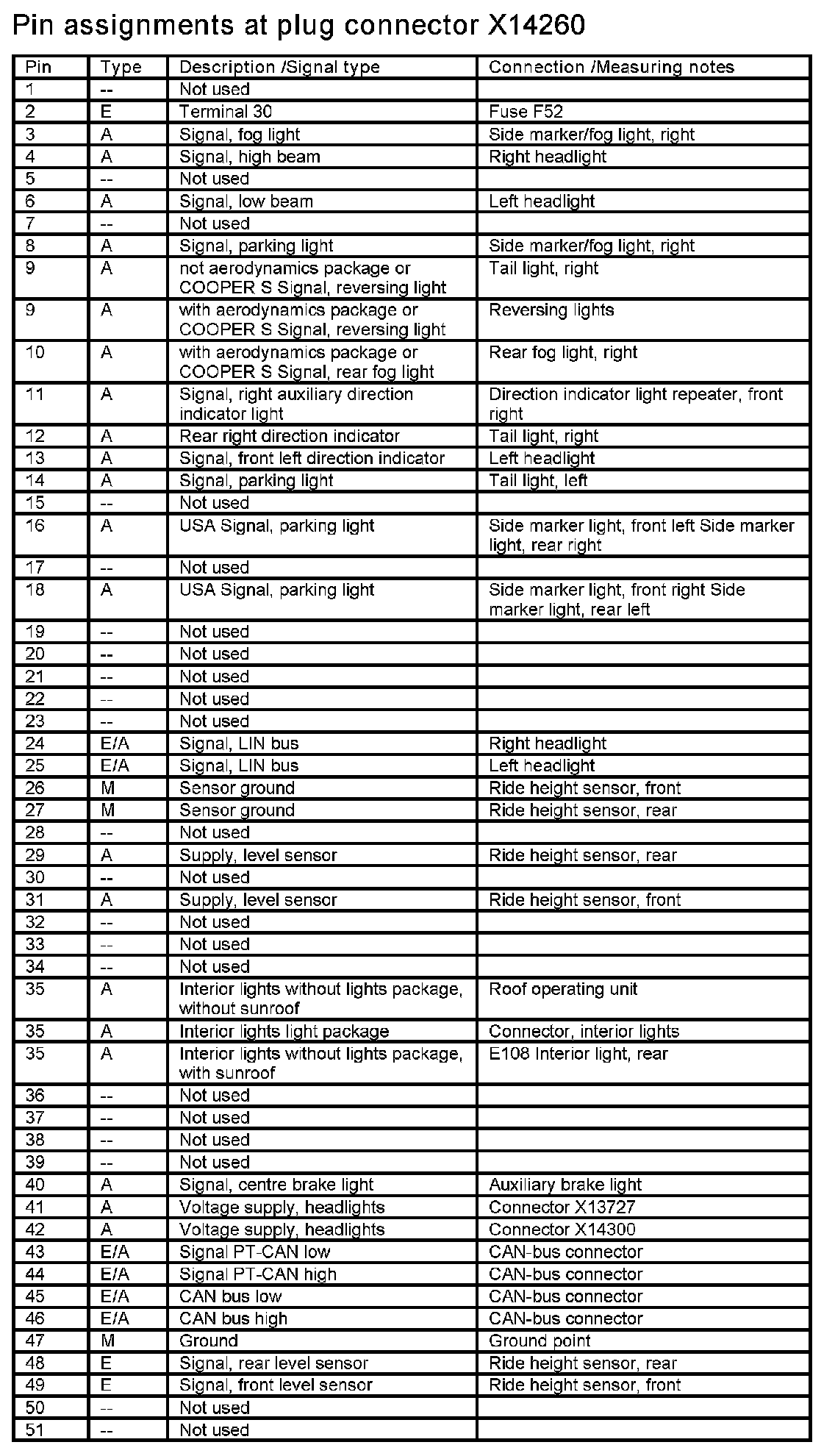

X14260







A4011 Footwell Module
