Home >> Mini >> 2009 >> Cooper JCW (R56) L4-1.6L Turbo (N14) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X14260 >> A4011 Footwell Module With Xenon Headlights, LHD

A4011 Footwell Module With Xenon Headlights, LHD

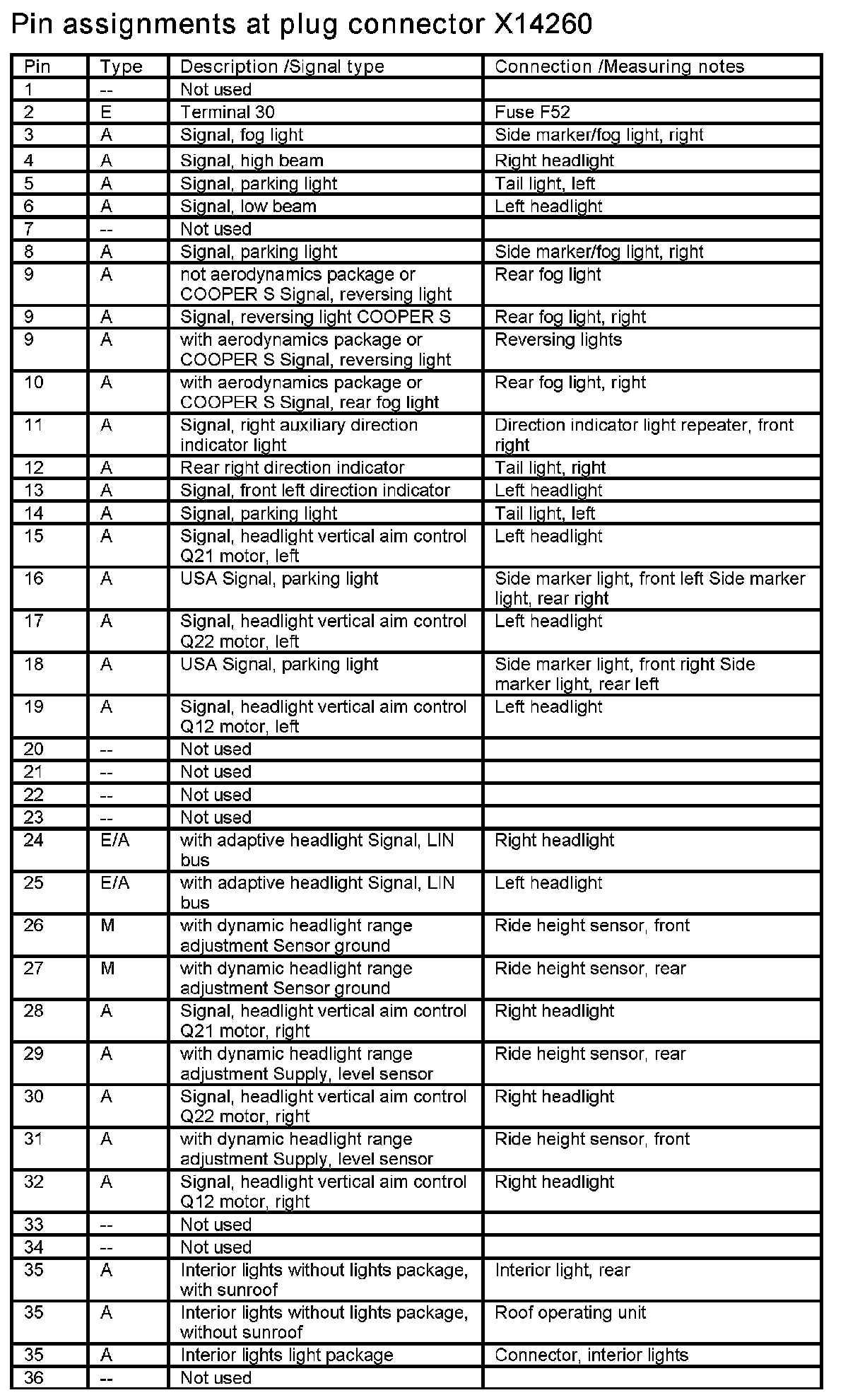

X14260







A4011 Footwell Module
