Sunroof / Moonroof Windguard: Service and Repair

54 13 090 Removing And Installing/Replacing Wind Deflector







Necessary preliminary work:
- Open glass slide/tilt sunroof







Release screws (1).

NOTE: The right side is removed in the same way as the left side.

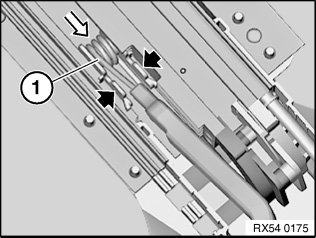

Press retaining lugs and slide spring joint (1) forwards up to recess in rail profile.
Remove spring joint towards top from rail profile.

Installation note:
Make sure rail profile is at correct installed height.







Installation note:
If necessary, initialise panorama glass roof.
