54 13 052 Replacing Seal on Front Glass Slide/Tilt Sunroof Cover

54 13 052 Replacing Seal On Front Glass Slide/Tilt Sunroof Cover







Necessary preliminary work:
- Move front glass slide/tilt sunroof cover to vent position

NOTE: Follow repair instructions for bonded sealing on glass slide/tilt sunroof.

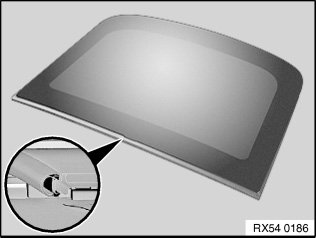

Pull seal off glass slide/tilt sunroof cover.

Installation note:
- Clean bonding surface with adhesive remover (sourcing reference, refer to EPC - Electronic Parts Catalogue)
- Press seal without stretching (squashing)
- Stick on seal in sections

IMPORTANT:
- Do not touch adhesive area.
- Surface temperature ≥ 20 °C Incorrect bonding of the sealing will result in leaks.
