61 35 954 Removing and Installing/Replacing Interior Antenna For Comfort Access System (Rear Seat)



61 35 954 Removing And Installing/Replacing Interior Antenna For Comfort Access System (Rear Seat)







Necessary preliminary tasks:
- Remove rear seat

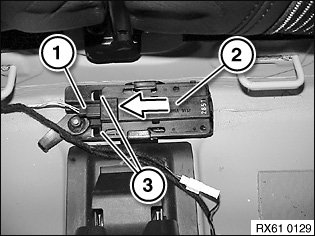

Disconnect plug connection (1).
Unlock catches (3) and remove interior antenna for comfort access system (2) in direction of arrow from holder.
