Fault Patterns BMW Professional Radio
Fault Patterns BMW Professional Radio
On the BMW Professional radio (RAD2), fault patterns that are not registered by fault memory entries can occur alongside the possible fault memory entries. The following table lists the most frequent fault patterns. The appropriate measure for fault elimination is described in the test module. Select the fault pattern from the list and enter the corresponding number.

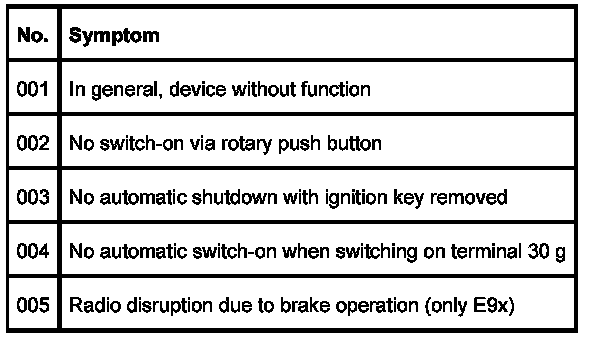

General
General:

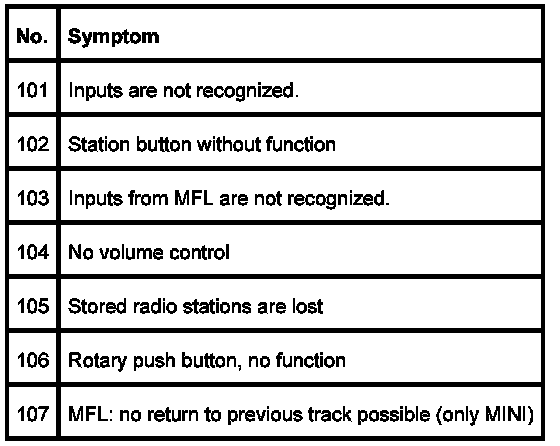

Operation
Operation:

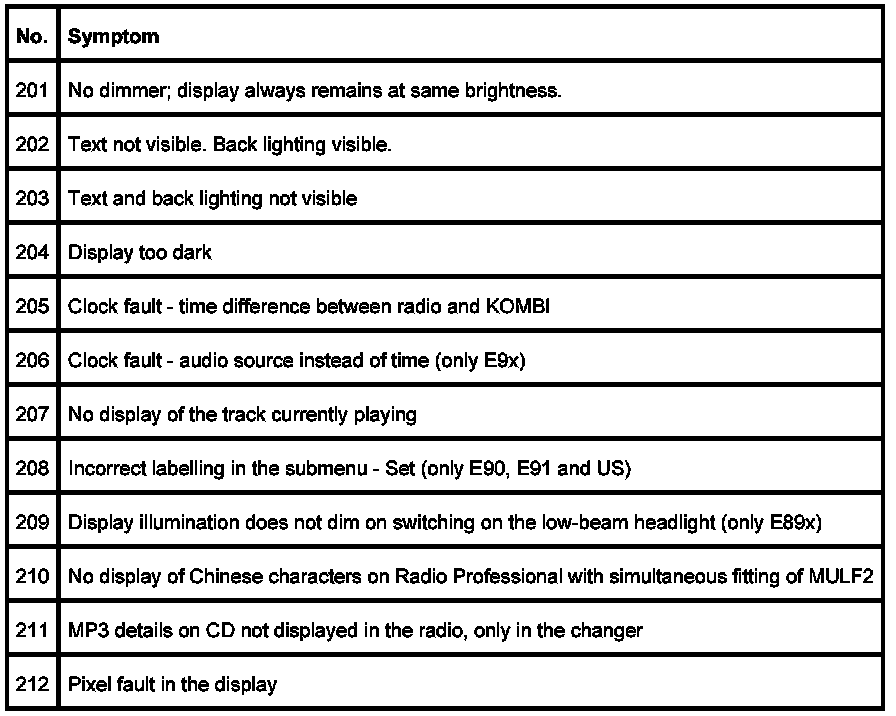

Display
Display:
Audio
Audio:

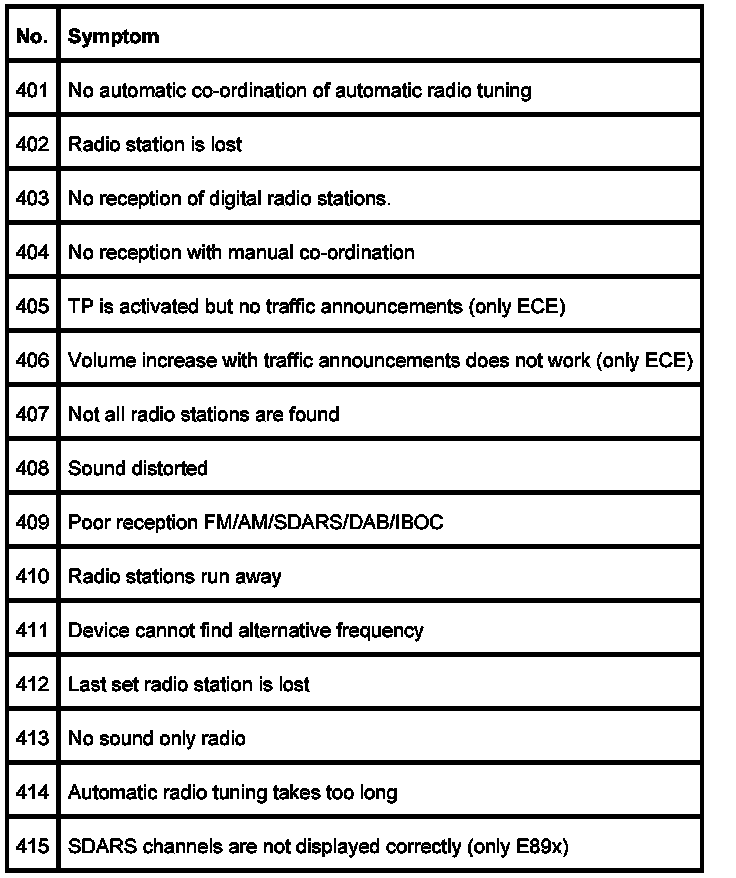

Tuner
Tuner:

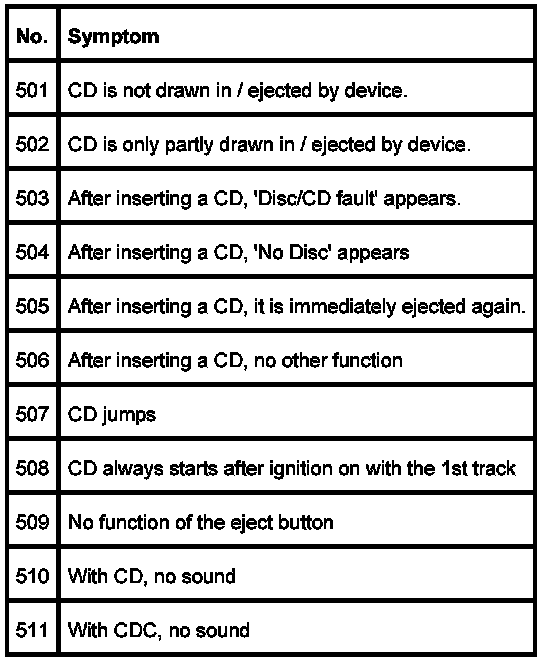

Drive (player)
Drive (Player):

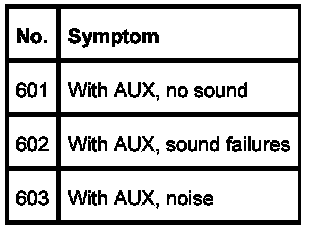

AUX-In connection
AUX-In Connection:
