65 13 080 Removing and Installing/Replacing Speaker (Tweeter In Side Trim Panel)



65 13 080 Removing And Installing/Replacing Speaker (Tweeter In Side Trim Panel)







Necessary preliminary tasks:
- Remove rear side trim panel

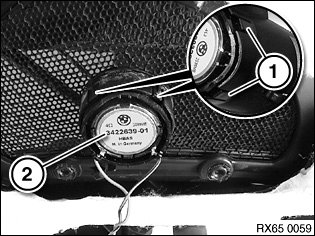

Carefully unclip catches (1) and remove speaker (2).

Installation:
All catches (1) must not be damaged
If necessary, accompanying seal must not be missing.
