65 13 080 Removing and Installing/Replacing Speaker (Rear Mid-Range Speaker)



65 13 080 Removing And Installing/Replacing Speaker (rear Mid-range Speaker)







Necessary preliminary tasks:
- Remove rear side trim panel

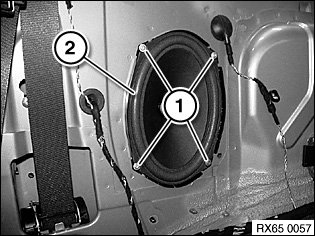

Release screws (1).
Remove speaker (2) and disconnect associated plug connection.
