65 13 040 Removing and Installing/Replacing Speaker (Woofer in Front Door)



65 13 040 Removing And Installing/Replacing Speaker (Woofer In Front Door)







Necessary preliminary tasks:
- Remove front door trim panel

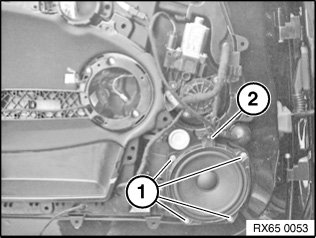

Release screws (1).
Disconnect plug connection (2) and remove speaker.
