Removing and Installing/Replacing Windscreen Washer Pump

61 71 100 - Removing and installing/replacing windscreen washer pump





Necessary preliminary tasks:
- Partially remove front left wheel arch trim Service and Repair





Note:
Catch any escaping washer fluid if necessary.

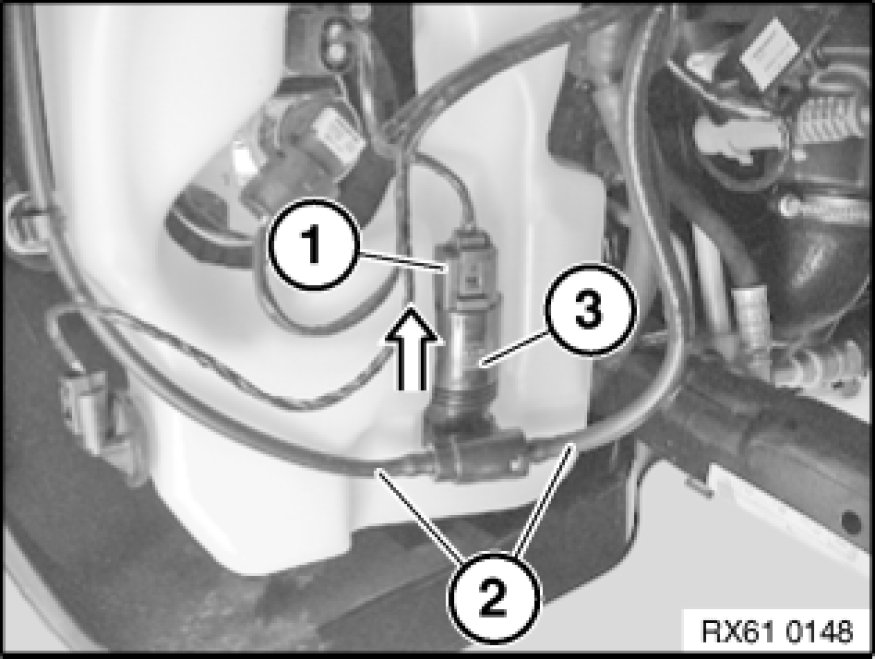

Disconnect plug connection (1).
Detach hoses (2) from windscreen washer pump (3).
Pull windscreen washer pump (3) out of fluid reservoir for windscreen washer system.

Installation:
Replace strainer in windscreen washer pump (3).
Coat sealing ring of windscreen washer pump (3) with anti-seize agent.
Make sure hoses are laid without kinks.
Fill fluid reservoir.
