Home
>>
Mini
>>
2009
>>
Cooper Convertible (R57) L4-1.6L (N12)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
F33
>>

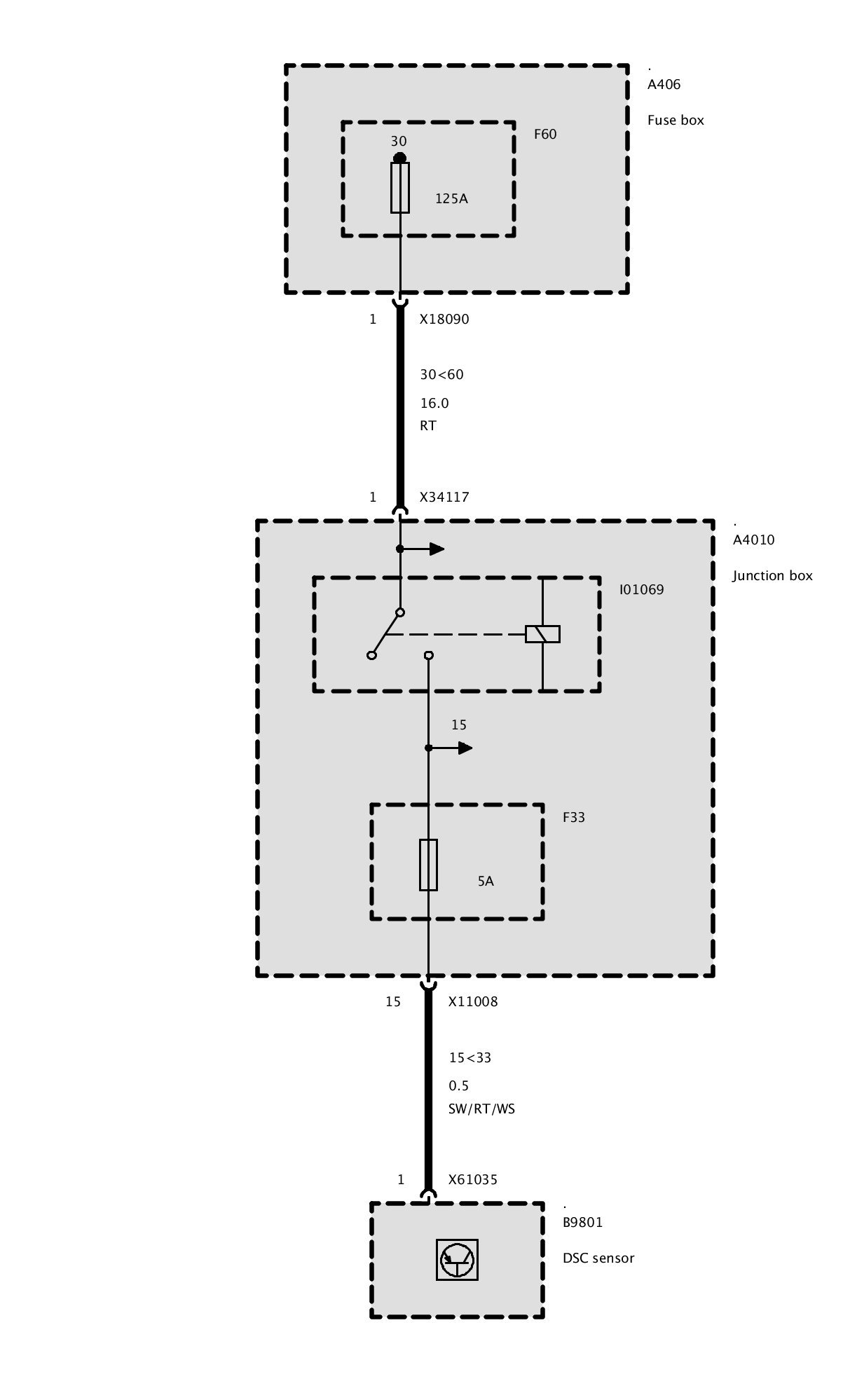

Fuse F33 (ABS/ASC/DSC Dynamic Stability Control Up to 12/08)
Fuse F33 (ABS/ASC/DSC Dynamic Stability Control Up to 12/08)
Fuse F33 (ABS/ASC/DSC Dynamic Stability Control Up to 12/08)
