16 12 010 Removing and Installing/Replacing Carbon Canister (40-Liter Tank)

16 12 010 - Removing and installing/replacing carbon canister (40-liter tank)





Necessary preliminary tasks:
- Remove rear right wheel arch trim.





Unlock and detach quick-connect couplings (1).

Installation:
Make sure quick-release fasteners engage correctly.

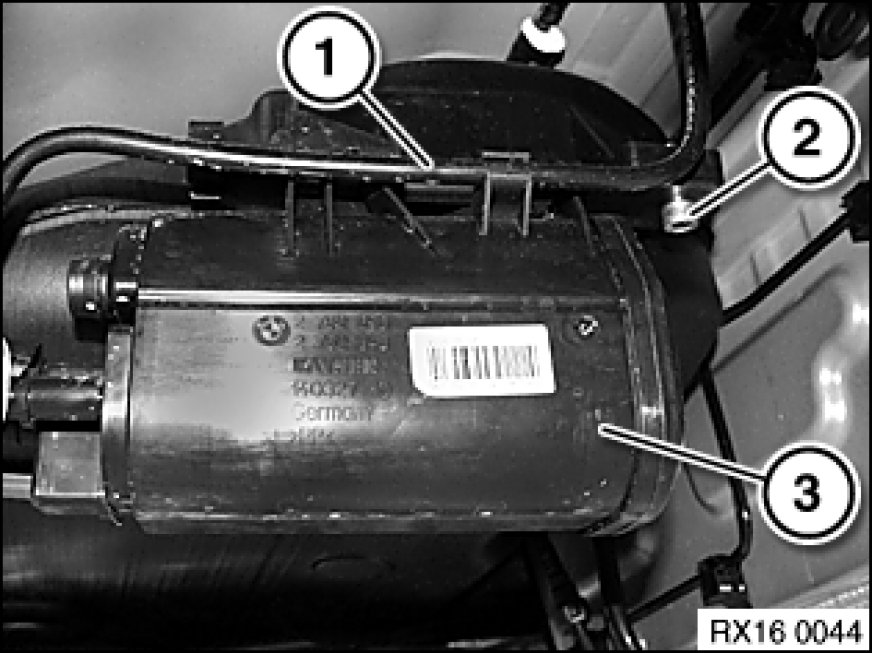

Unclip line (1).
Release screw (2) and swing out carbon canister (3).
