61 12 180 Replacing Wiring Harness on Function Carrier on Left or Right Front Door

61 12 180 Replacing Wiring Harness On Function Carrier On Left Or Right Front Door







Necessary preliminary tasks:
- Remove front door trim panel
- Remove armrest from front door trim panel
- Remove cover on door handle
- Remove switch for door mirror
- Remove speaker trim from door trim panel
- Remove speaker

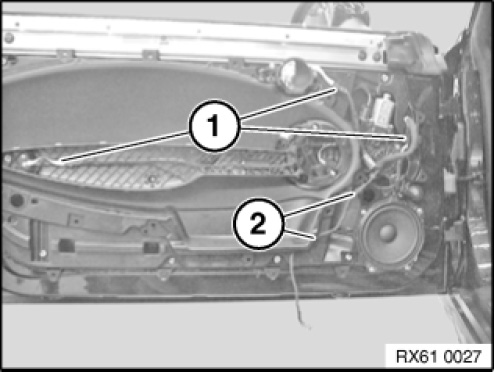

Disconnect plug connection (1).
Unclip wiring harness holders (2).
Feed out wiring harness out of function carrier and remove.

Installation:
Make sure door wiring harness is correctly laid.
