63 31 150 Removing and Installing/Replacing Glovebox Light



63 31 150 Removing and installing/replacing glovebox light







IMPORTANT: Follow instructions for replacing light bulbs (interior lights).







Open glovebox.

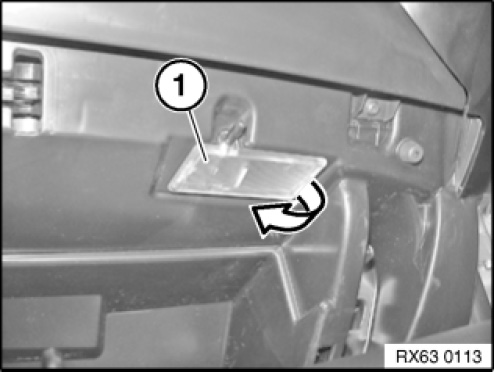

Lever out glovebox light (1) in direction of arrow.
Disconnect plug connection and remove glovebox light (1).

Replacement:
- Remove bulb
- Note bulb type
