Electrical Diagrams



A2a Instrument Cluster Control Module A9001 Additional Instrument

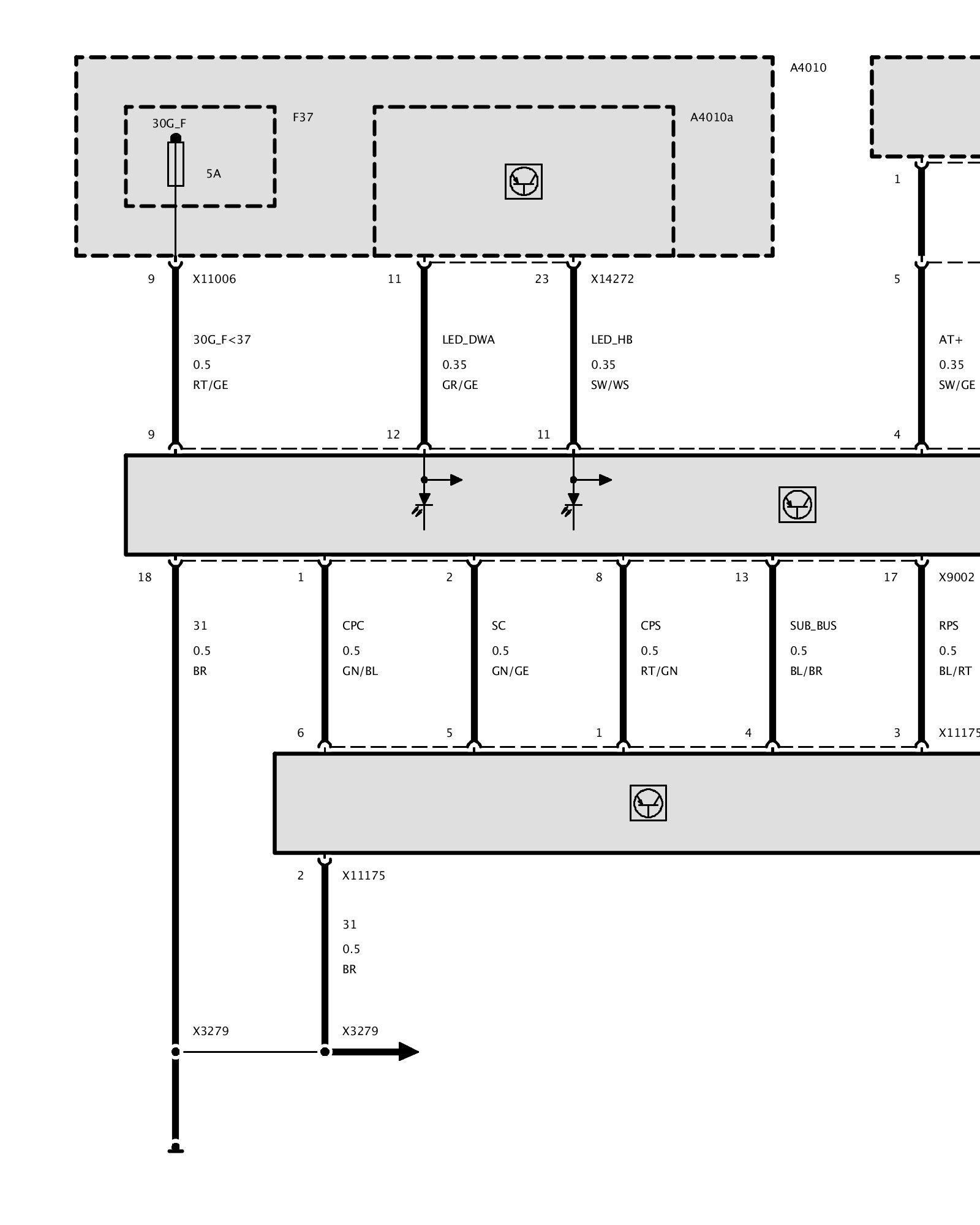

Part 1:

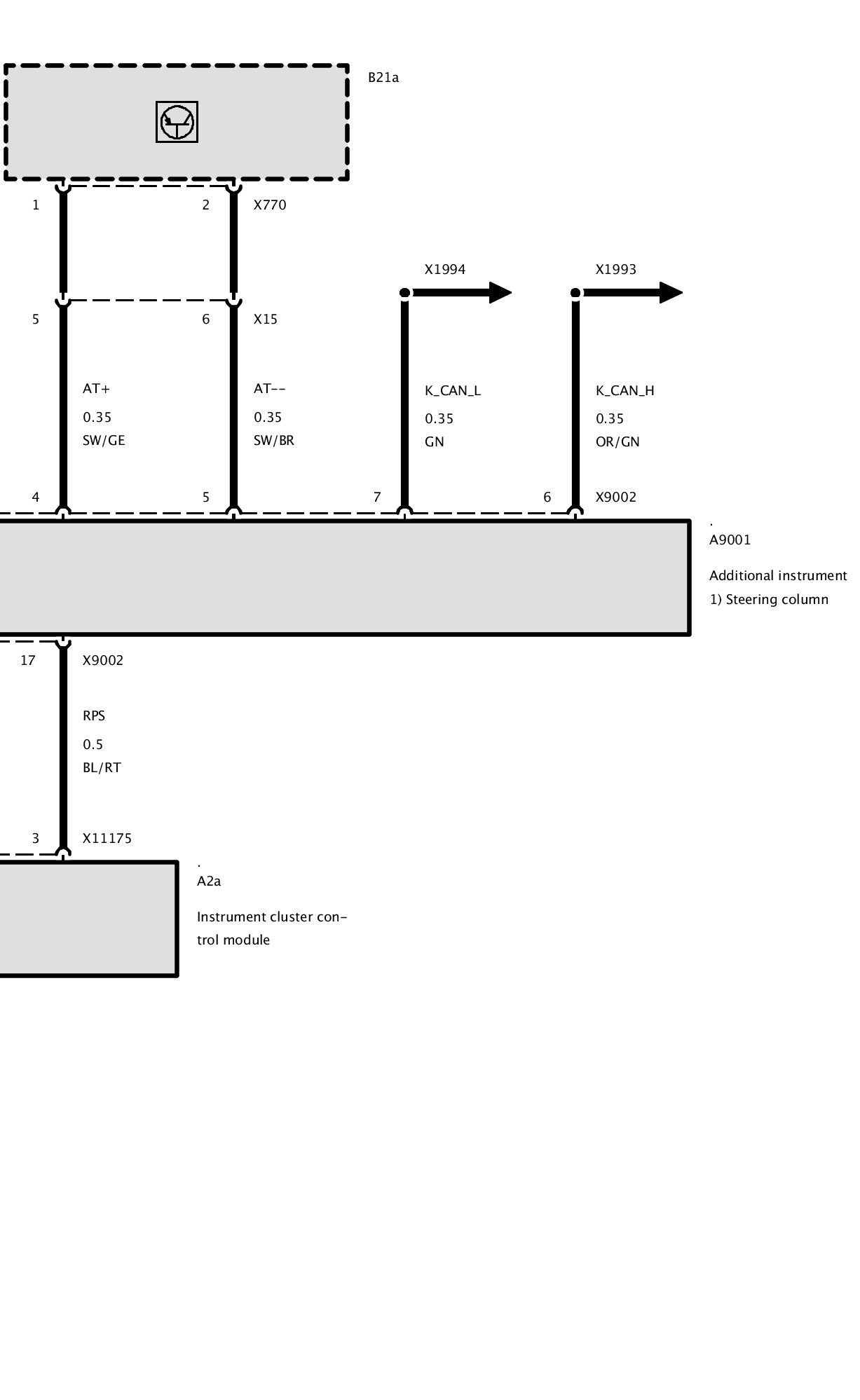

Part 2:
