Home >> Mini >> 2009 >> Cooper Convertible (R57) L4-1.6L (N12) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F30 >> Fuse F30 (Up to 12/08)

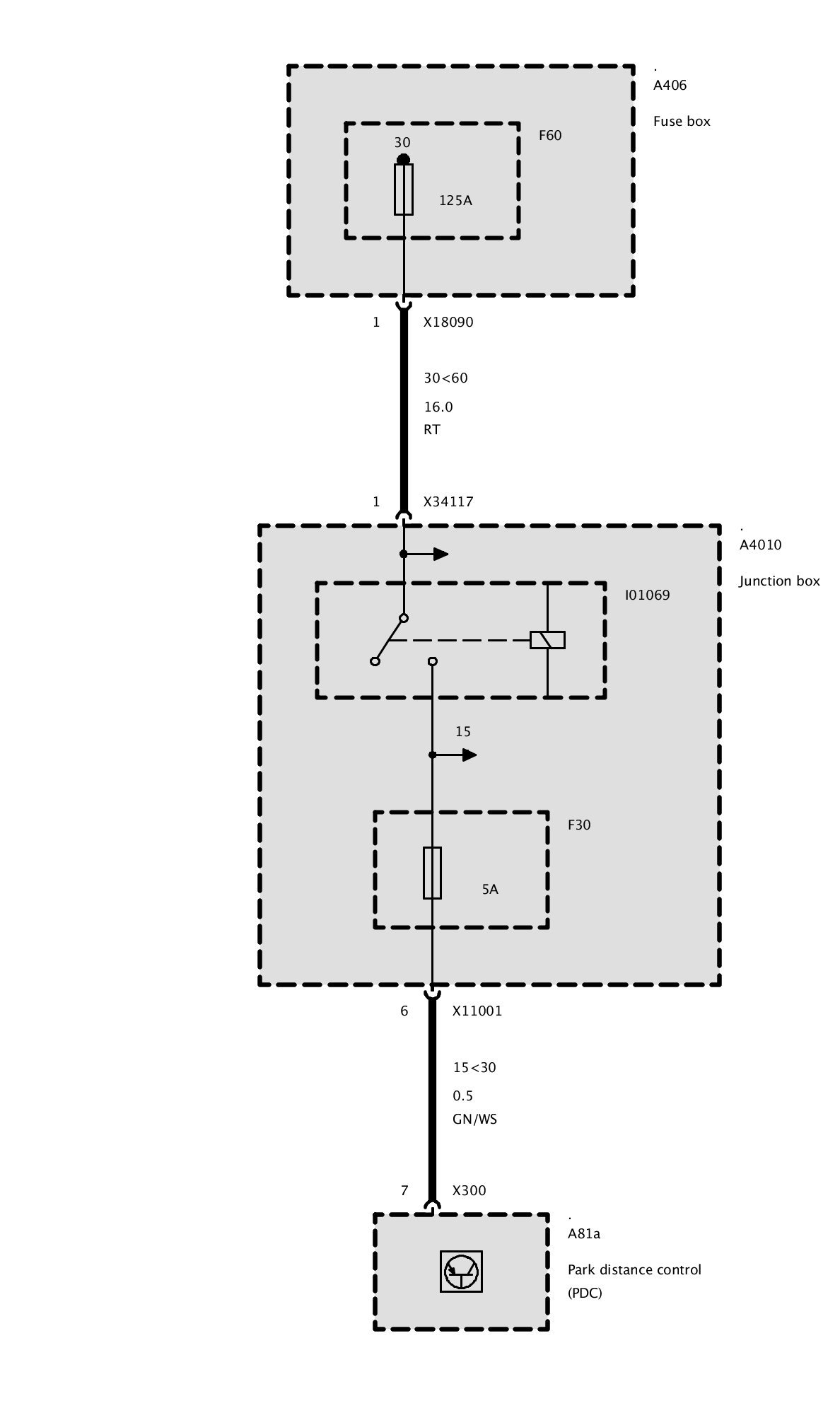

Fuse F30 (Up to 12/08)



Fuse F30 (Up to 12/08)
