Home >> Mini >> 2009 >> Cooper Convertible (R57) L4-1.6L (N12) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F3

F3

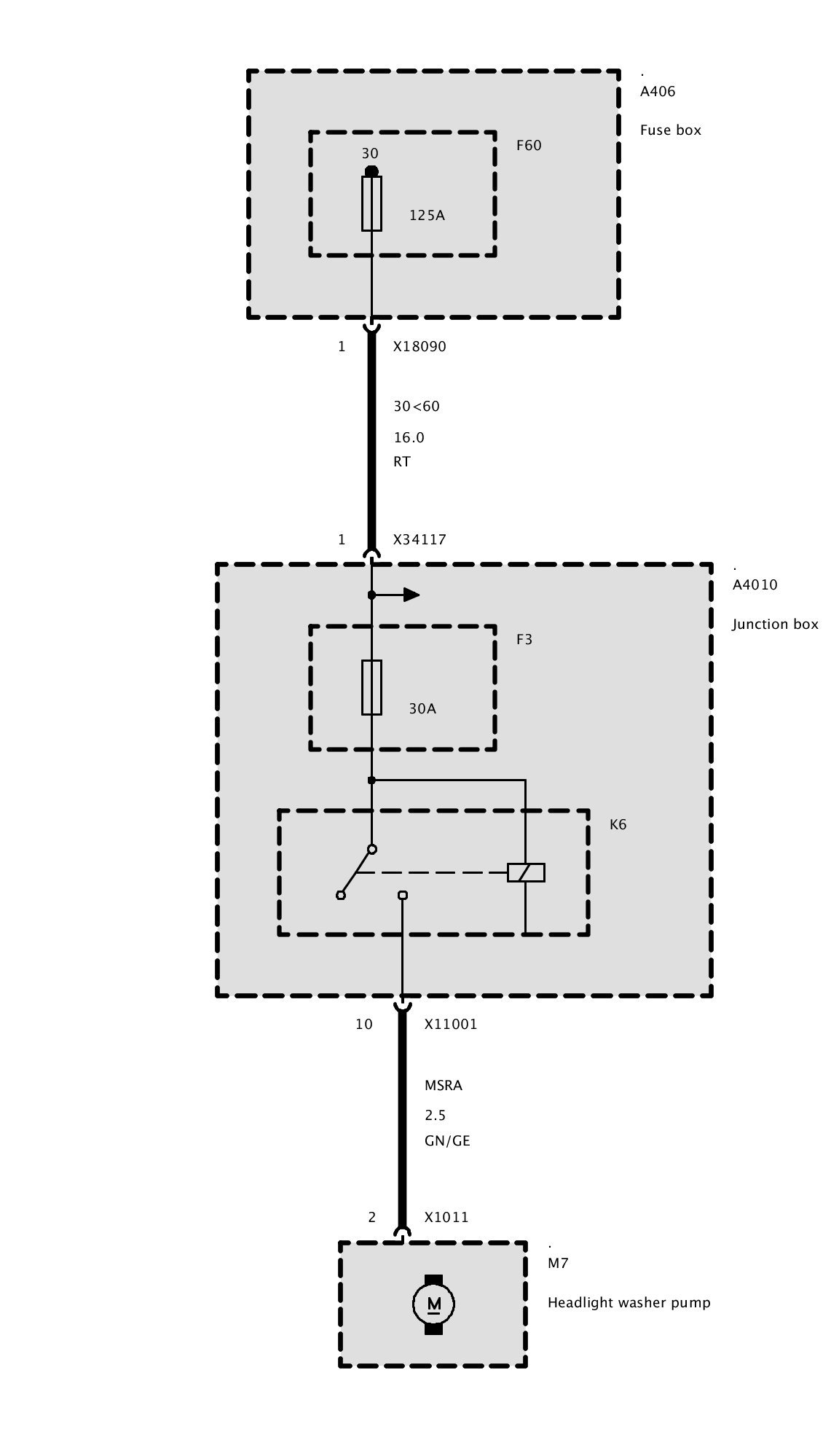

Fuse F3 (Up to 12/08)
