Home >> Mini >> 2009 >> Cooper Convertible (R57) L4-1.6L (N12) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F08

F08

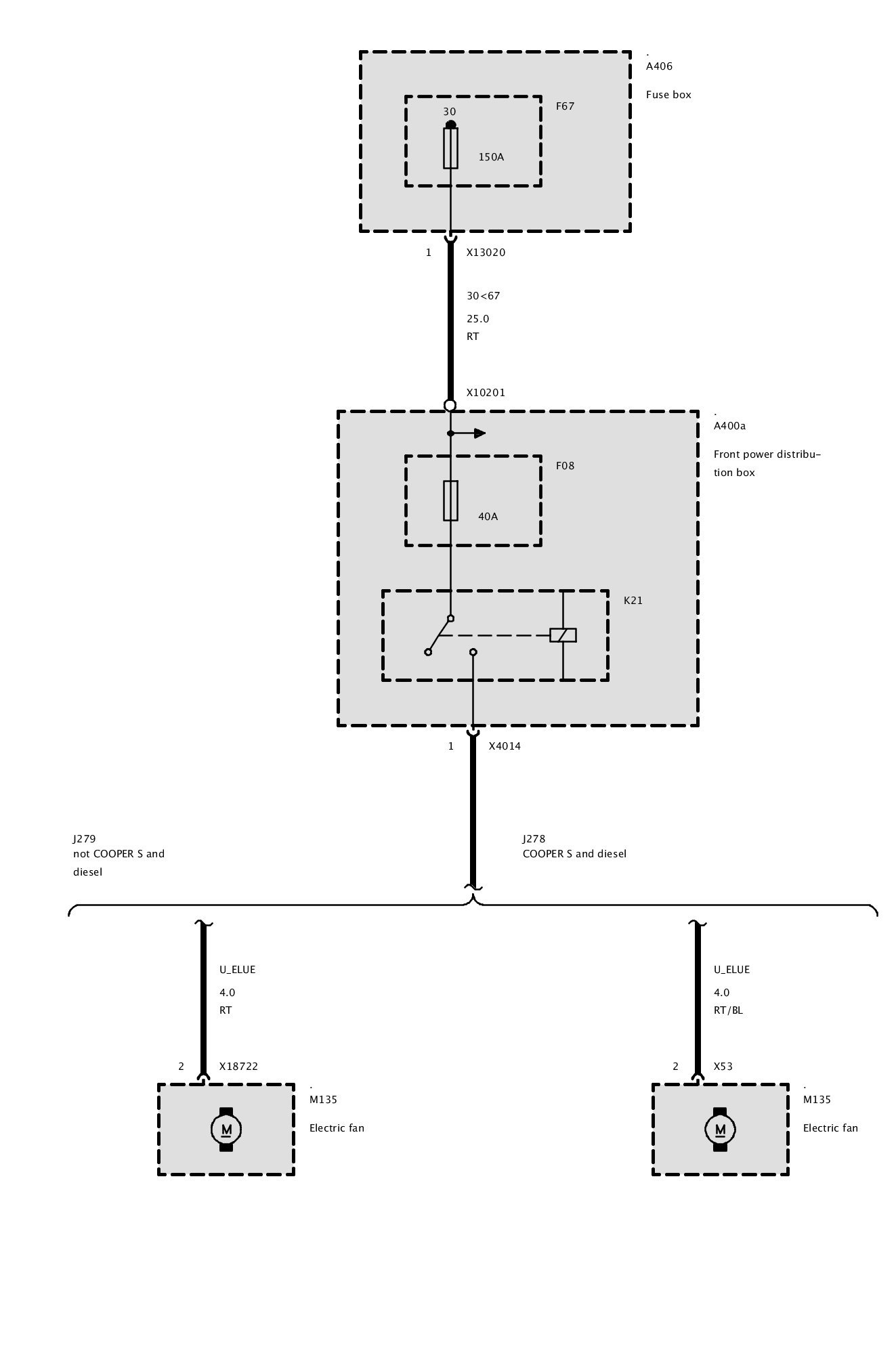

Fuse F08 (As of 08/07)
