Traction Control Module

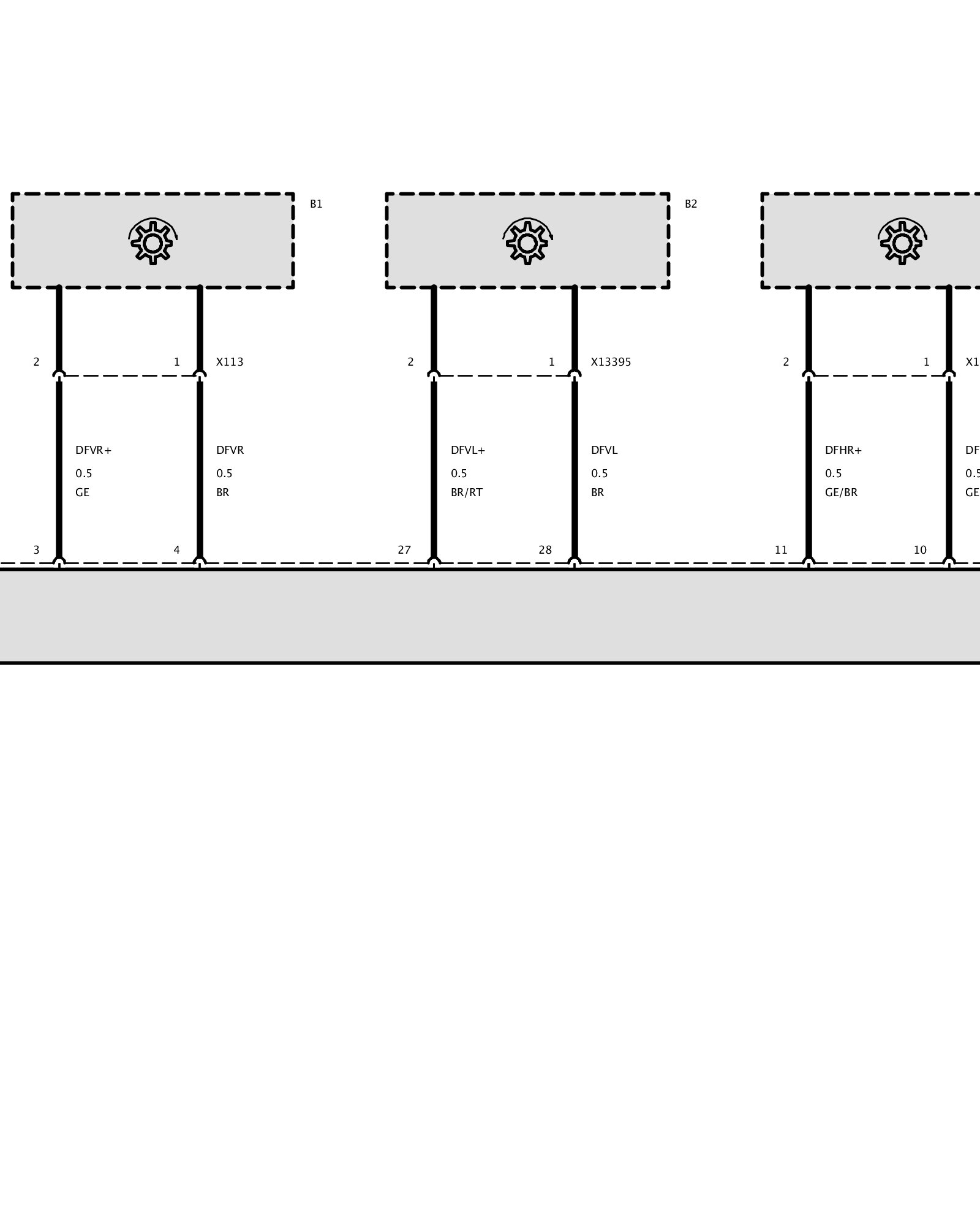

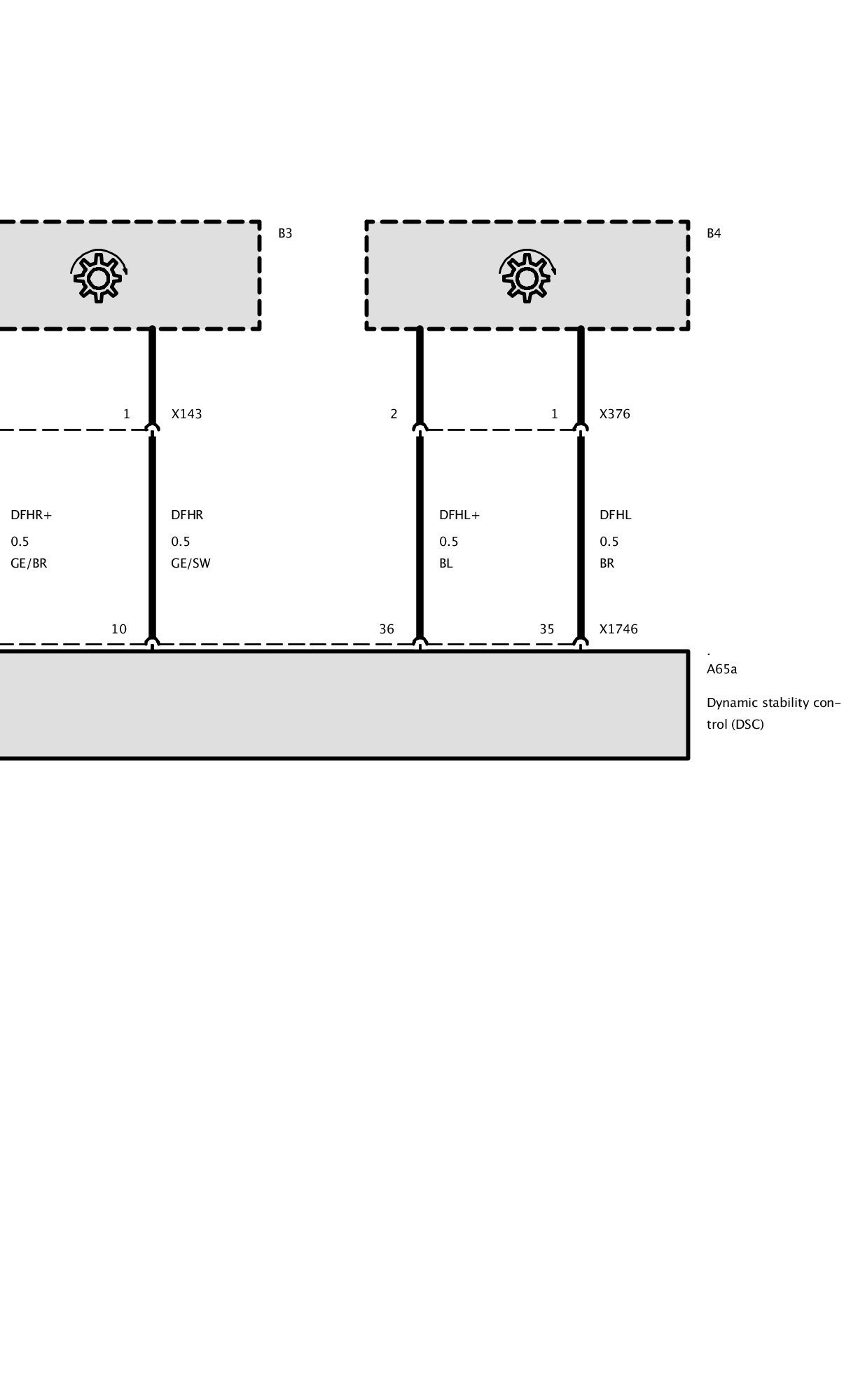

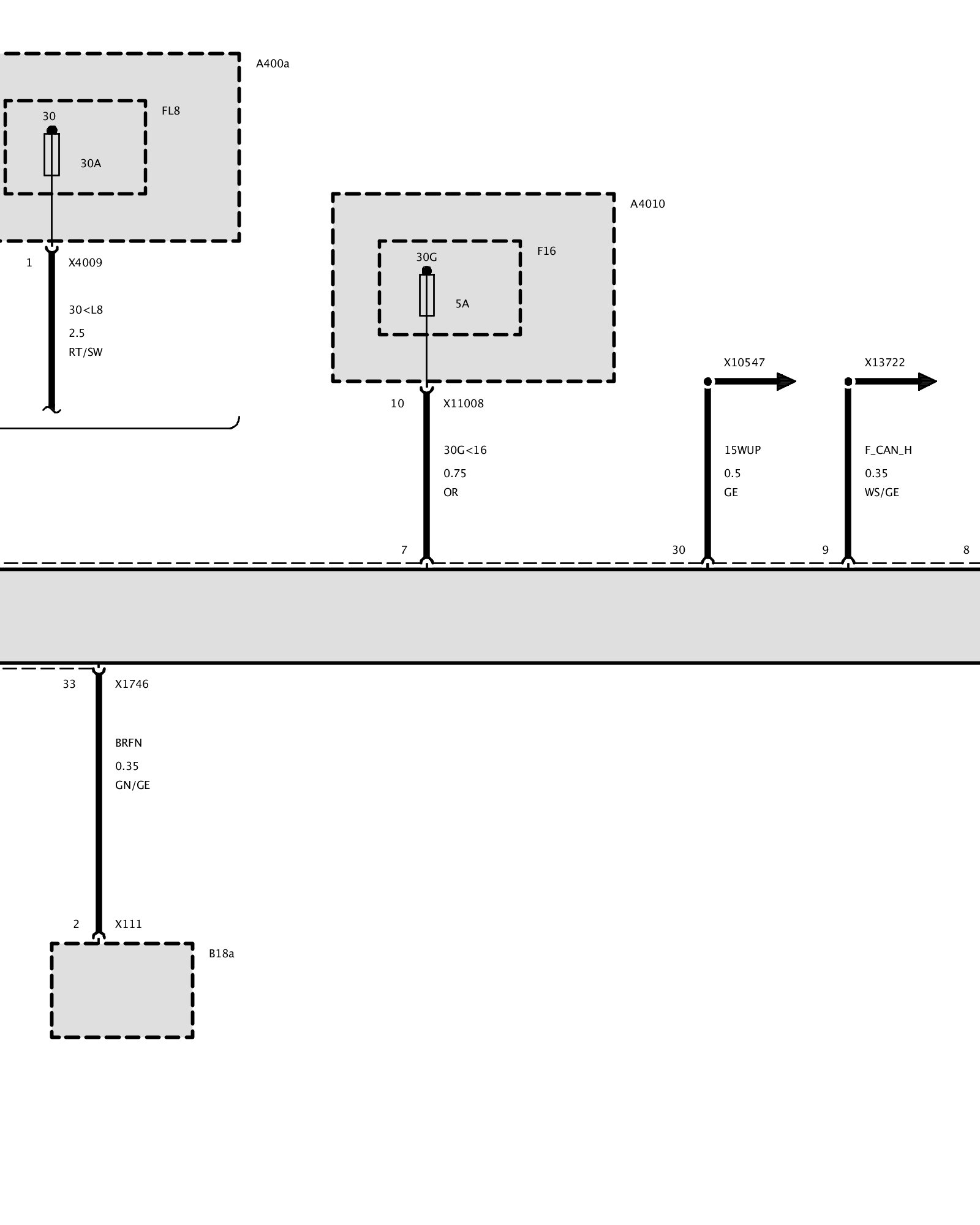

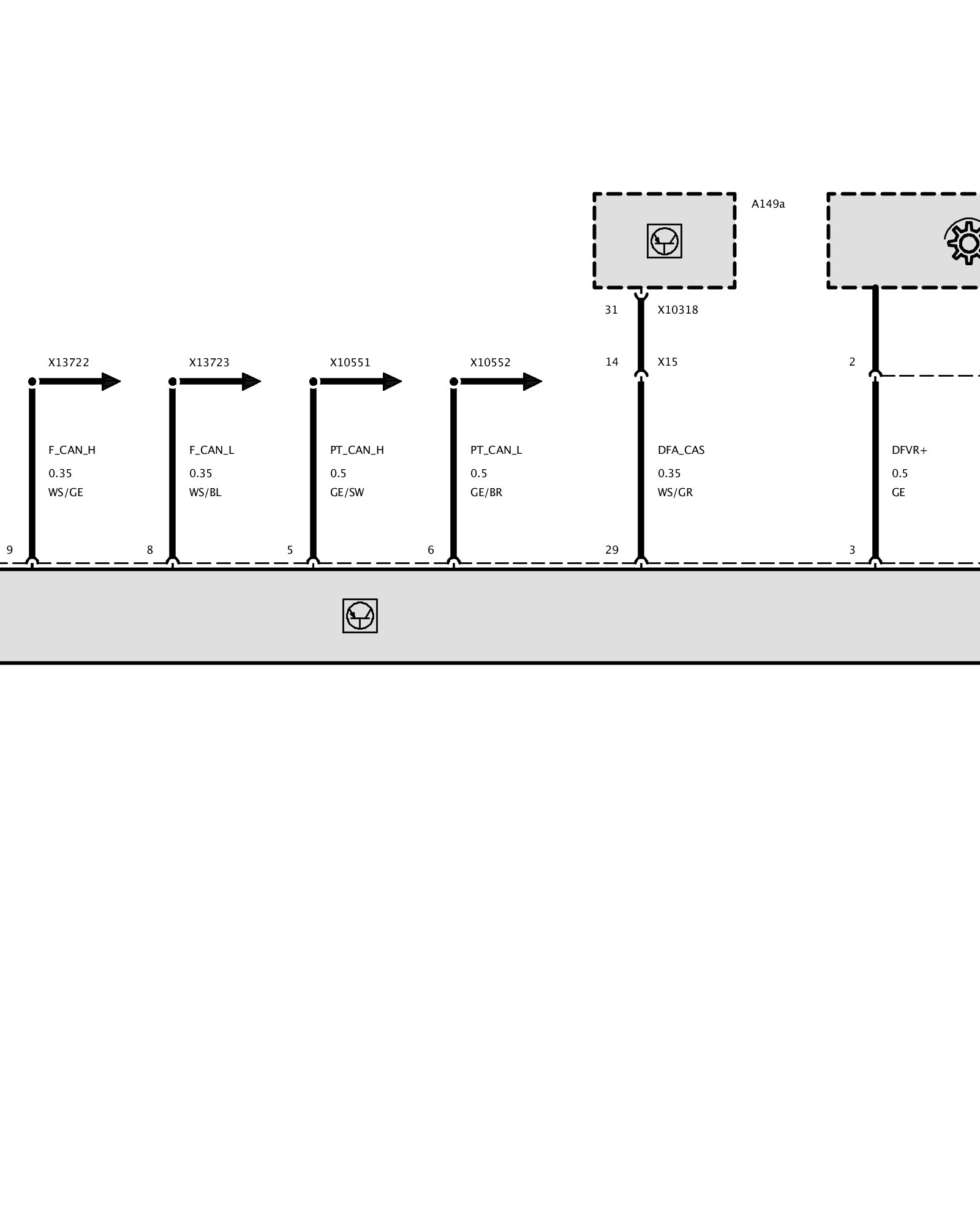

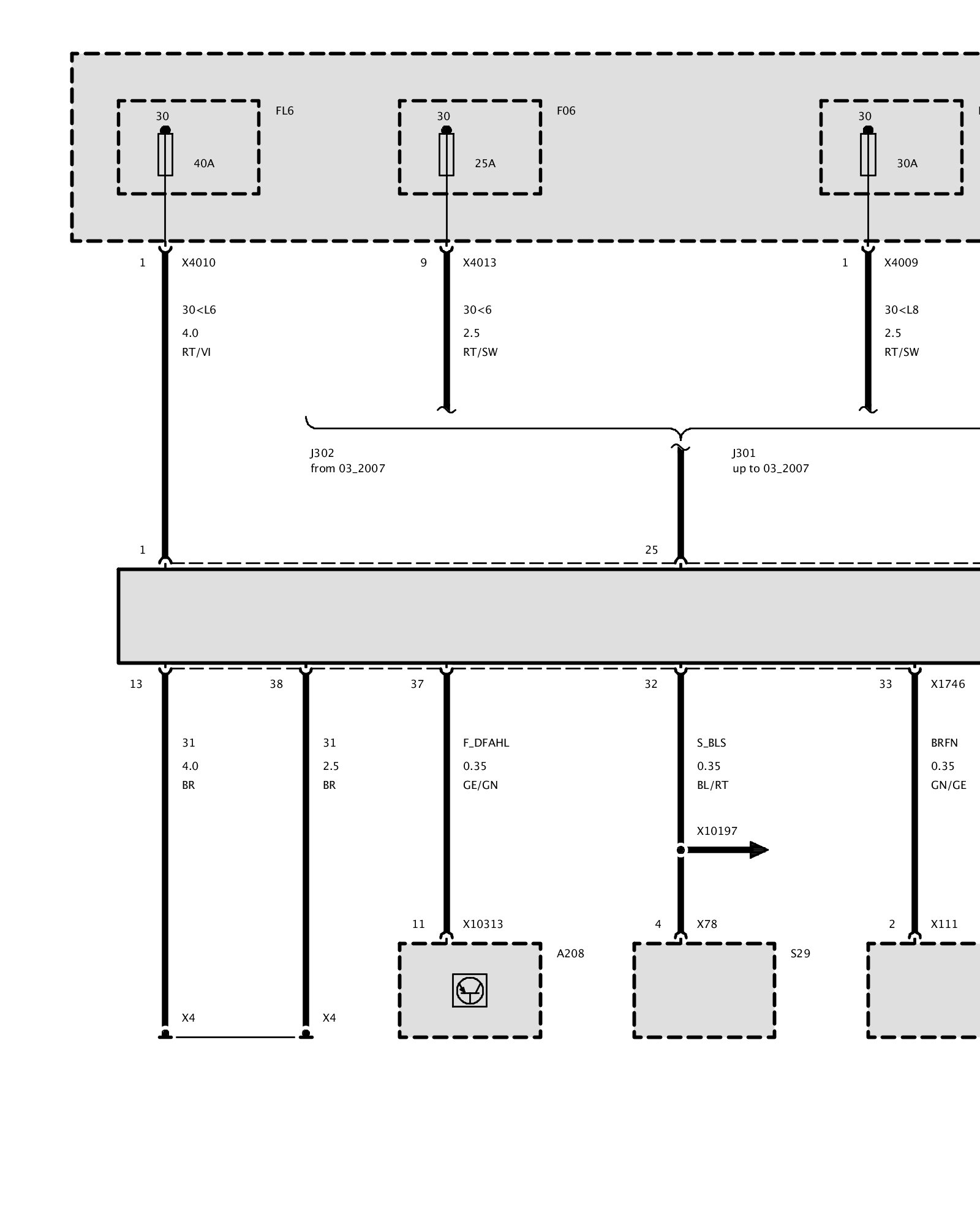

A65a Dynamic Stability Control (DSC)


Part 1:




Part 2:




Part 3:




Part 4:




Part 5:
